Everything was there! Rebuilt the B&G one gallon sprayer, tried it out and everything works.
The biggest challenge on my sprayer was getting the trigger off. One side screws in/out, the other side taps out. This, of course, was not a kit problem. If you follow the directions on the label, everything else will go smoothly.
Where can I find an exploded view of a B&G wand for repairs?
You can find the expanded view on our website on the B&G sprayer product page. For your convenience we have also linked the guide here: B&G product manual. The view you are seeking is on the second page of the manual.

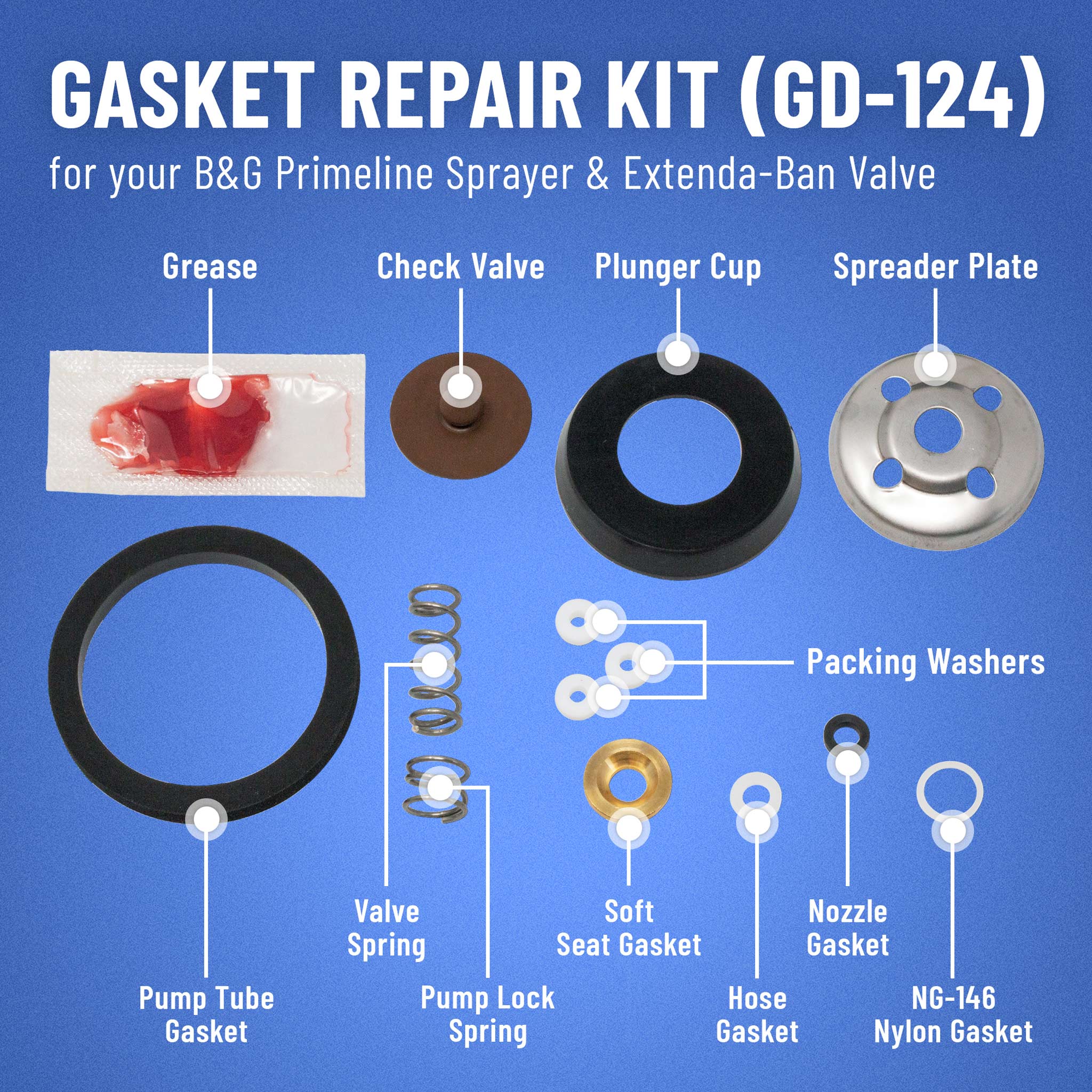

Does this B&G Gasket Repair Kit GD-124 work on older model all stainless 1 gal.model?
The B&G Gasket Repair Kit GD-124 is for B&G stainless steel sprayers with extenda-ban valves. If you have an older model we would recommend confirming with B&G directly to be sure it will work. They can be reached at 800-544-8811
