Product Overview

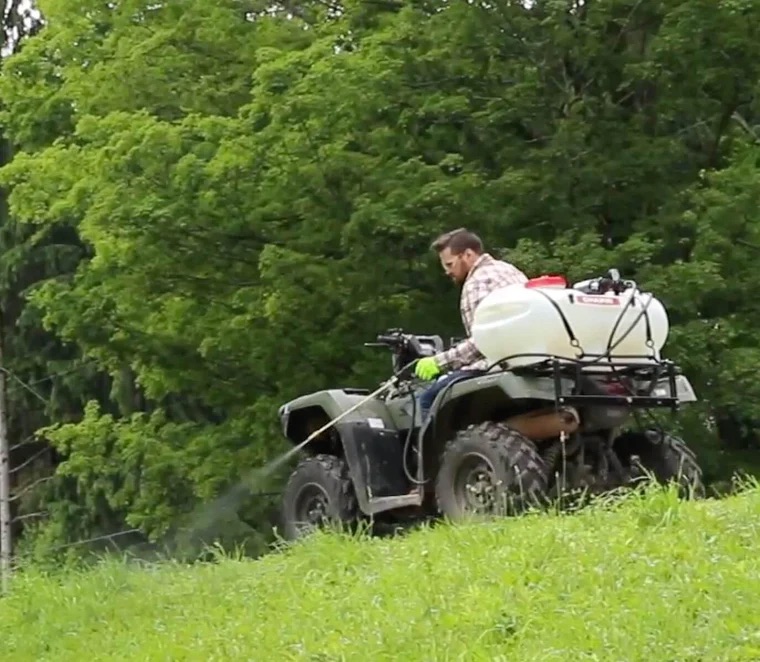

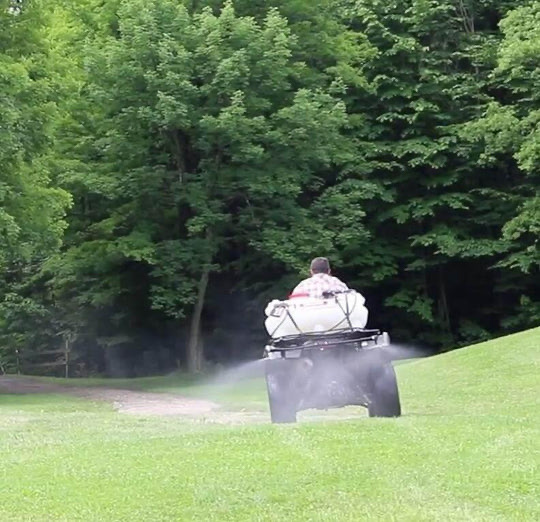

The Chapin 25 Gallon 12v EZ Mount Dripless Sprayer is a heavy-duty sprayer made to be mounted to a standard UTV, ATV, or lawn tractor. It works well with common pesticides, fertilizers, and weed killers. Its chemical-resistant tank holds up to 25 gallons. Also features a wide mouth opening with a drain plug for easy filling and cleaning. This sprayer has a dual filtration system which helps it last longer. Its 18-inch spray wand has a dripless shut-off. It has a maximum spray pressure of 70 psi, a horizontal spray range of 26 feet, and a vertical spray range of 38 feet.

Product Documents

Features and Specs

For use in ATVs, UTVs, or lawn tractors.
Dimensions 38.25 x 19.00 x 18.25
Voltage 12 Volts.
Sprayer Type Dripless sprayer.
Tank Size (gal.) 25 gallons.
Material / Construction Poly.
Hose Length (in.) 180 inches.
Wand Length (in.) 19 inches.
Pressure (PSI) 40 - 60 PSI.
Special Features Dual filtration system
Warranty One year limited warranty
Shipping Weight 31.00 lbs
Manufacturer Chapin (Mfg. Number: 97500E)

Details

SPECIAL FEATURES

  • 15-foot reinforced hose
  • Manifold with pressure gauge
  • High performing 12-volt diaphragm pump and dual filtration system

TECHNICAL SPECS

Tank Size (gallons) : 25 gallons

Tank Mouth Opening (inches) : 6 inches

Tank Material : Poly

Pump Type : Diaphragm

Motor Size (GPM) : 2.5 GPM

Hose Length (inches) : 180 inches

Hose Material : Reinforced PVC

Extension Wand Length (inches) : 19

Extension Wand Material : Brass

Seal Material : Chemical-resistant

Nozzle : Adjustable brass

Filters : 2-stage

Shut-off Material : Brass

Lock-on Feature : yes

Anti-siphon Feature : no

Pressure Relief Value : no

Spray/Flow Rate (GPM) : 0.4-0.5

Operating Pressure : 40 - 60 PSI
