Product Overview

The Chapin 15 Gallon Mixes On Exit (MOE) 12v 2.2 GPM ATV Spot Sprayer (97361) has a 15-gallon water tank and a 1.33-gallon concentrate tank. Its clean tank spraying system that separates the water tank and the concentrate tank avoids wasteful premixing of chemicals. Built with an adjustable Mixes On Exit (MOE) valve that mixes the contents of the water and the concentrate tanks as you spray. Has built-in in-tank filters to prevent clogging of elements. The Chapin 97361 is compatible with most UTVs, ATVs, and lawn tractors, and can be easily installed with the included ratchet straps.  Additional concentrate tanks are available, allowing you to switch out chemicals quickly while on a job.

Product Documents

Features and Specs

For use in Fertilizers, Weed and Feed, Fungicides, Herbicides, and Pesticides.
Dimensions 38.30 x 14.80 x 18.40 inches.
Tank Size (gal.) 15 Gallons.
Material / Construction Tank - poly
Shut-off - poly
Extension wand - poly
Nozzle - adjustable brass
Hose - black PVC
Hose Length (in.) 180 inches.
Pressure (PSI) 40 - 60 PSI.
Special Features Adjustable Mixes On Exit (MOE) Valve mixes the concentrate and water as you spray.
Warranty One Year Limited Warranty
Parts Included Ratchet Straps Included
Shipping Weight 17.30 lbs
Manufacturer Chapin (Mfg. Number: 97361)
UPC 023883973612

Details

FEATURES:

  • 15 Gallon Water Tank, 1.33 Gallon Concentrate Tank

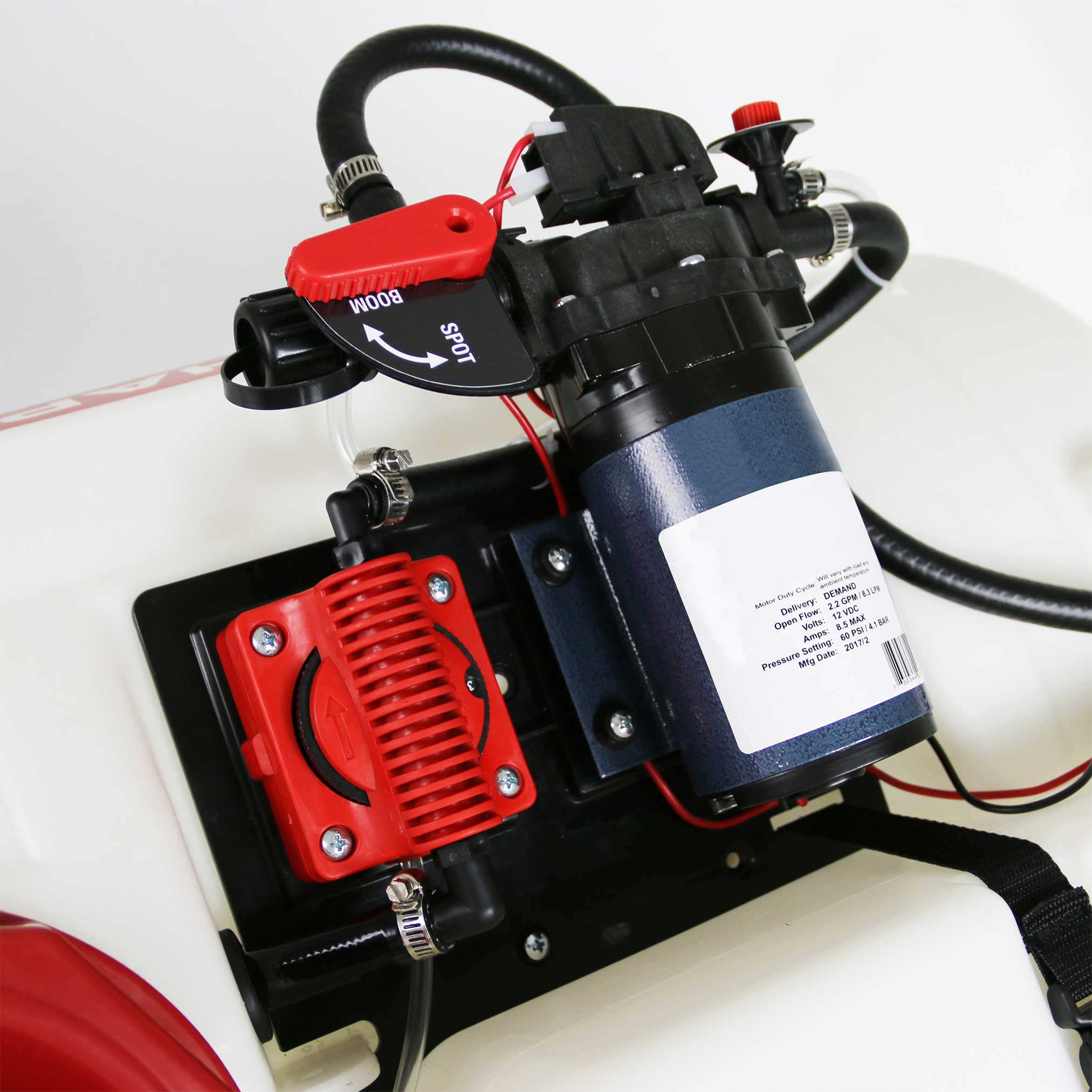

  • 2.2 GPM Pump clips to your ATV/UTV/Lawn Tractor battery

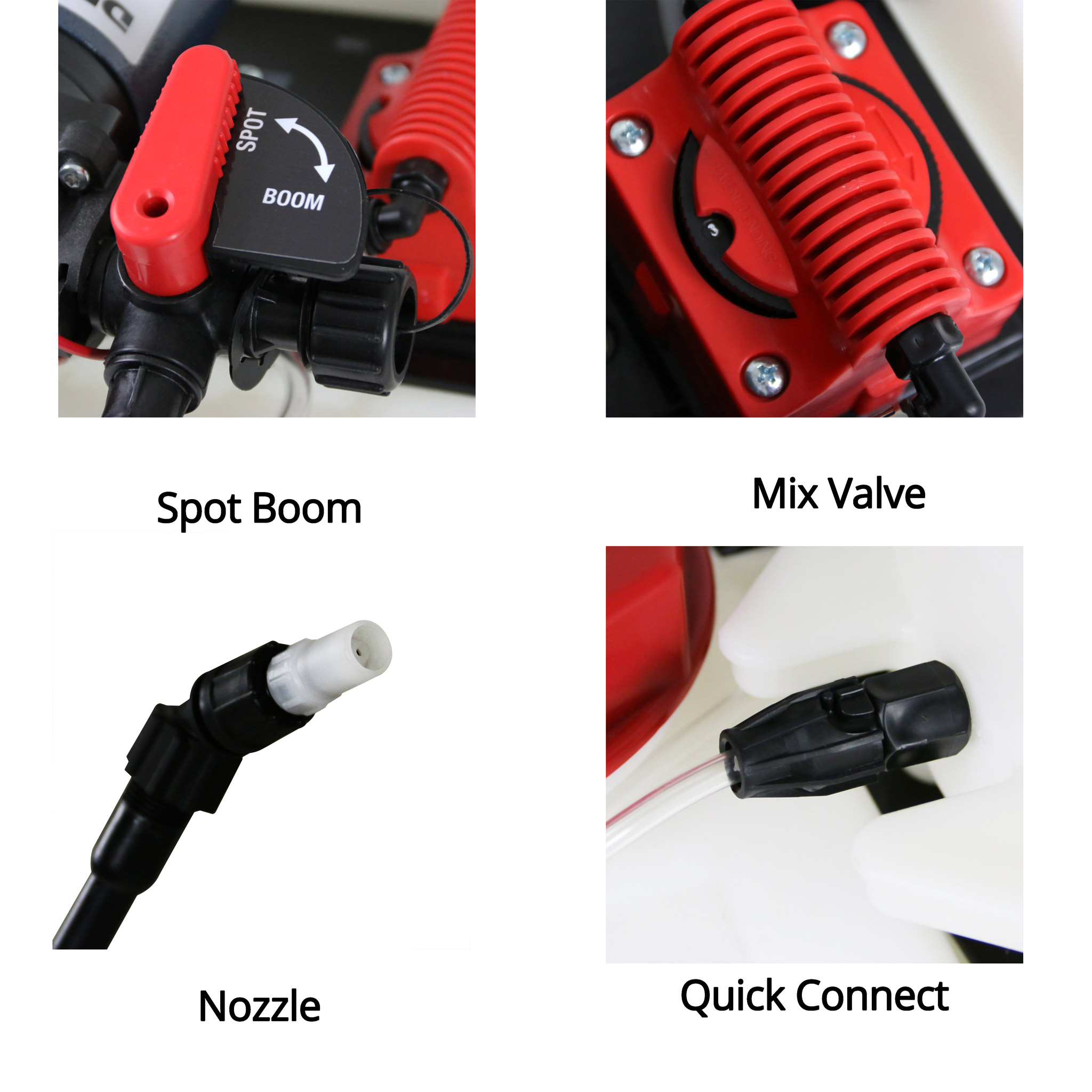

  • Adjustable Mixes on Exit (MOE) Valve mixes the concentrate and water as you spray, from 1 to 15 ounces per gallon
  • Quick Connect fitting makes it easy to swap concentrate tanks (additional concentrate tanks sold separately)
  • Keep and store concentrate tanks for later use
  • Poly nozzle adjusts from tight stream to fine cone mist
  • Switchable boom and spot spray functions (boom spray kits sold separately)

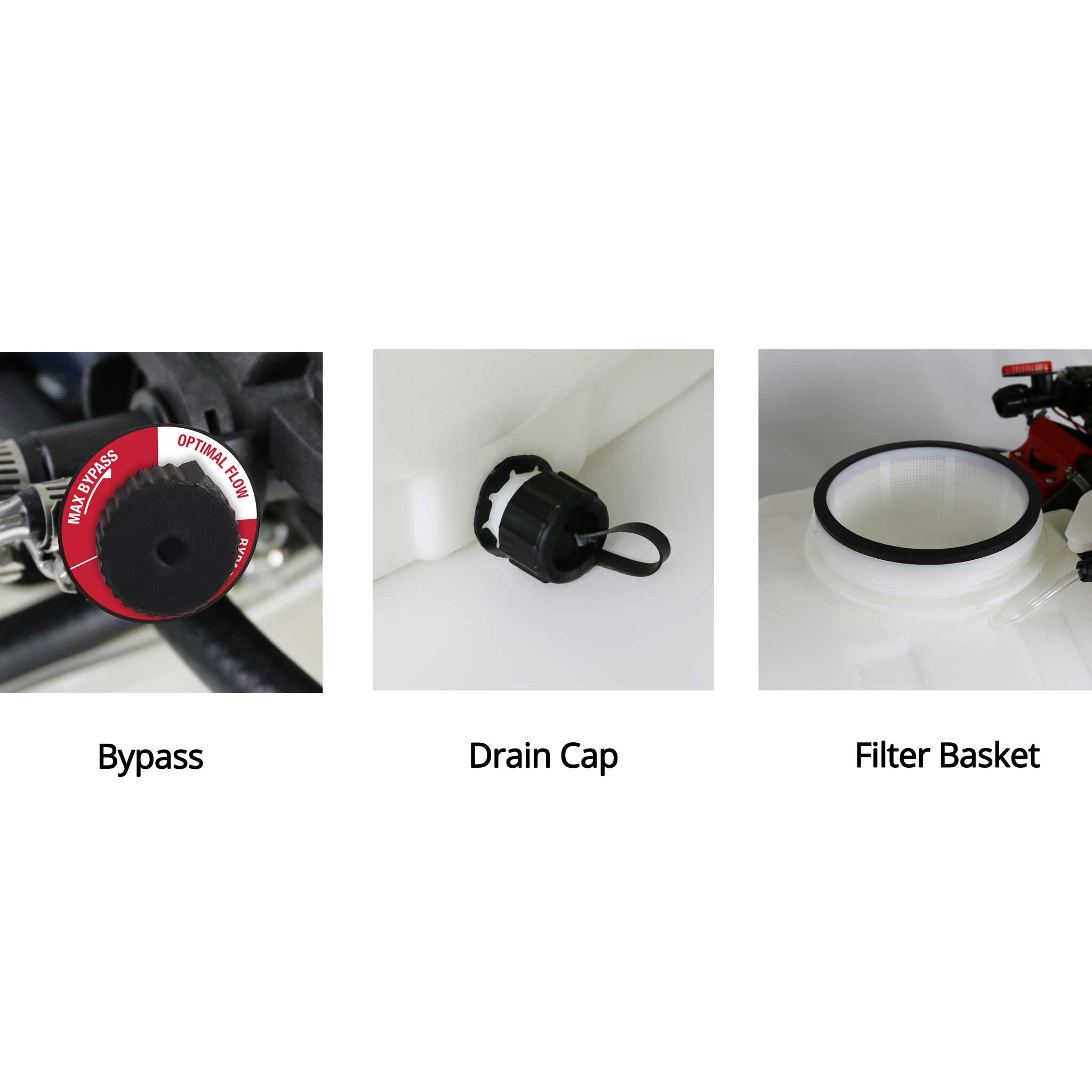

  • Drain cap to quickly empty the water tank
  • In-tank filters prevent clogging
  • Compatible for use with most ATVs, UTVs and lawn tractors
  • Install on an ATV easily - ratchet straps are included
