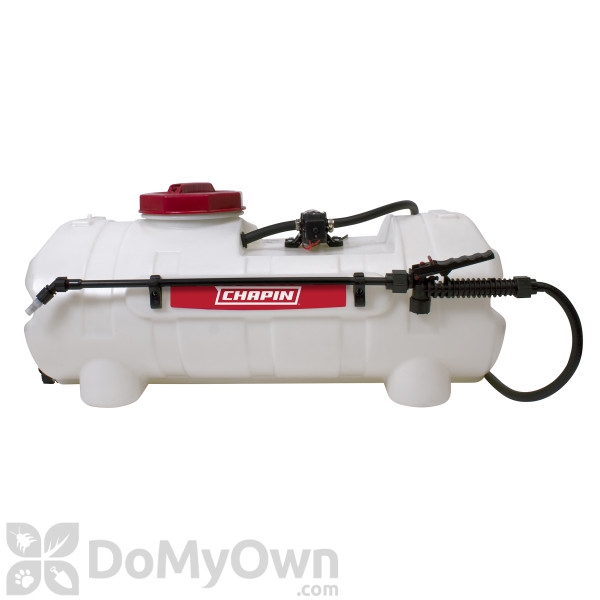

Chapin 97400E 25 Gallon 12v EZ Mount Spot Sprayer

Chapin 97400E 25 Gallon 12v EZ Mount Spot Sprayer

Have a Question? Ask Our Pros!

Call Us: 866-581-7378
Mon-Fri 9am-5pm ET
Email Our Pros
We're here to help
Live Chat
Offline. Leave Us a Message

You May Also Need

Demand Duo Insecticide
$9.98

Average Rating

There are no reviews for this product yet. Be the first.

Product Overview

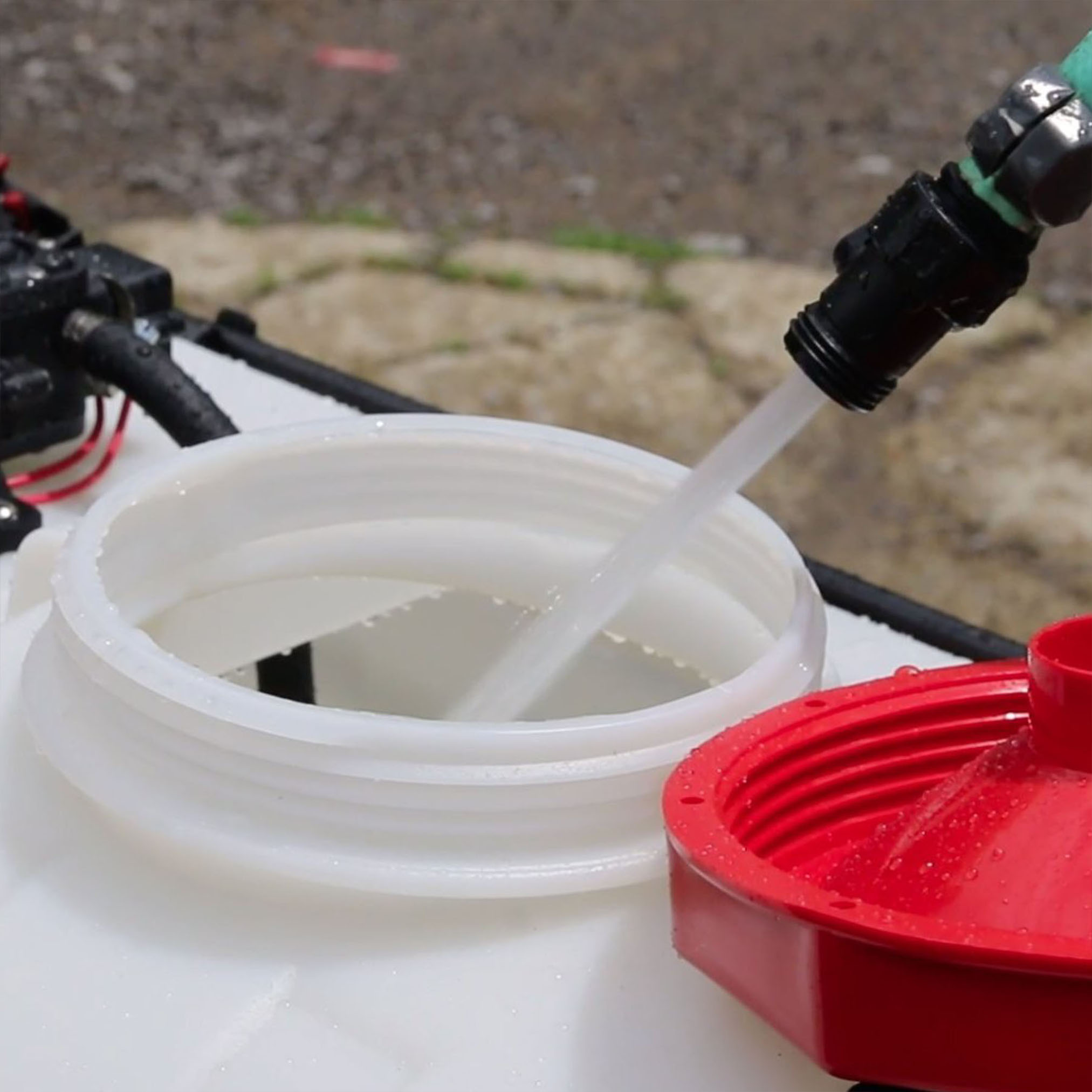

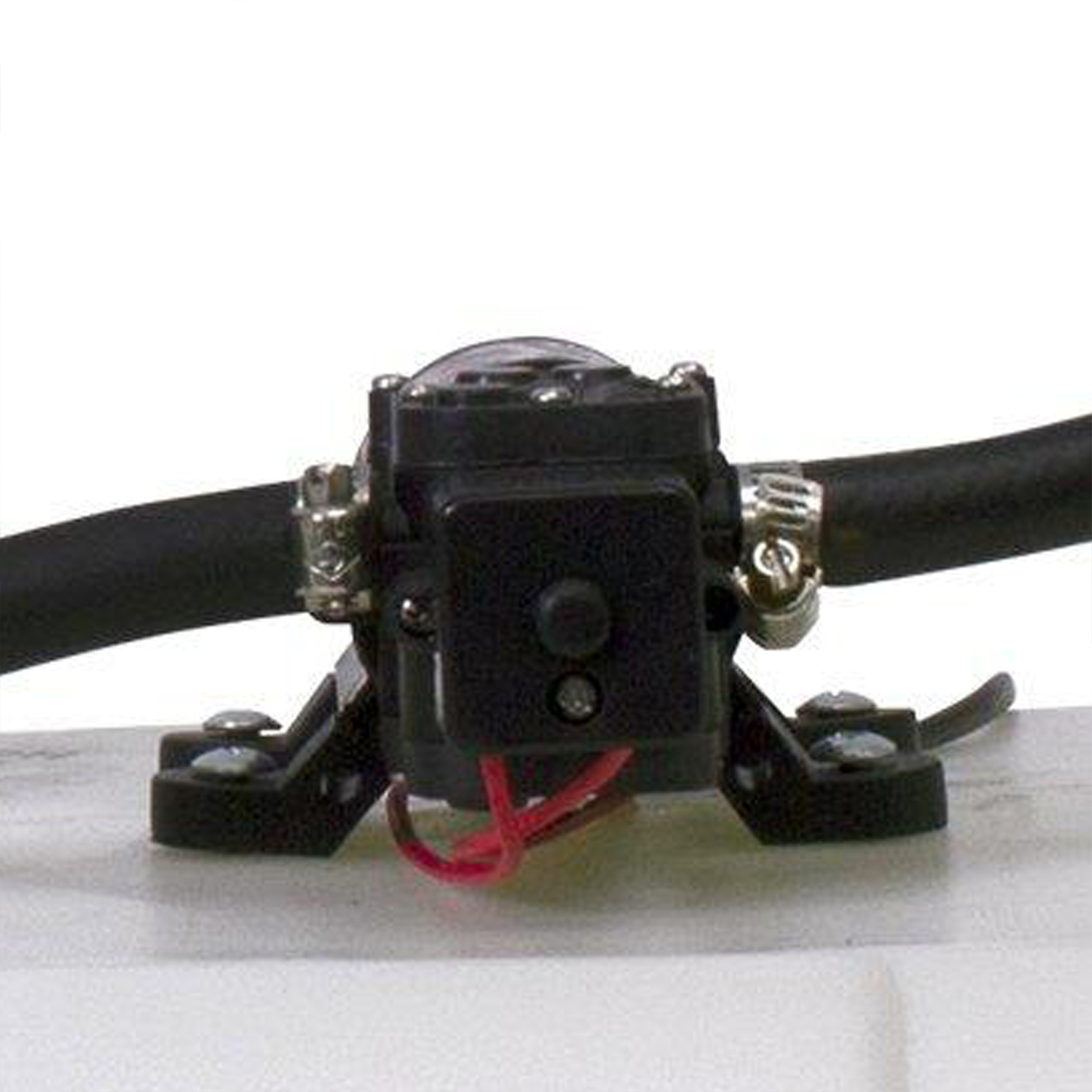

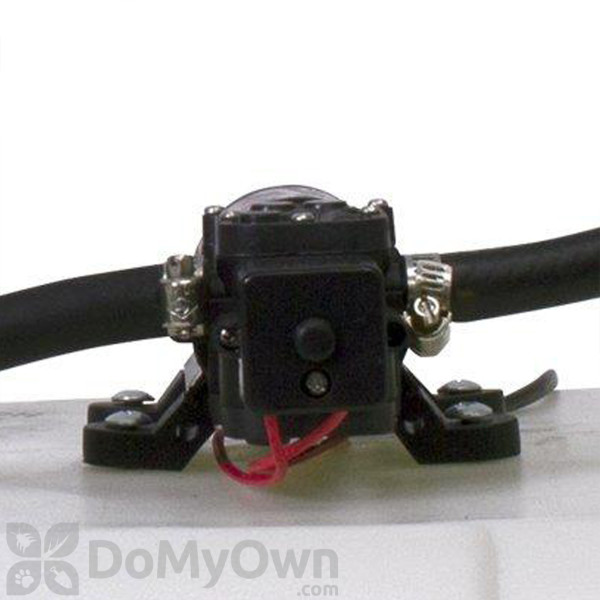

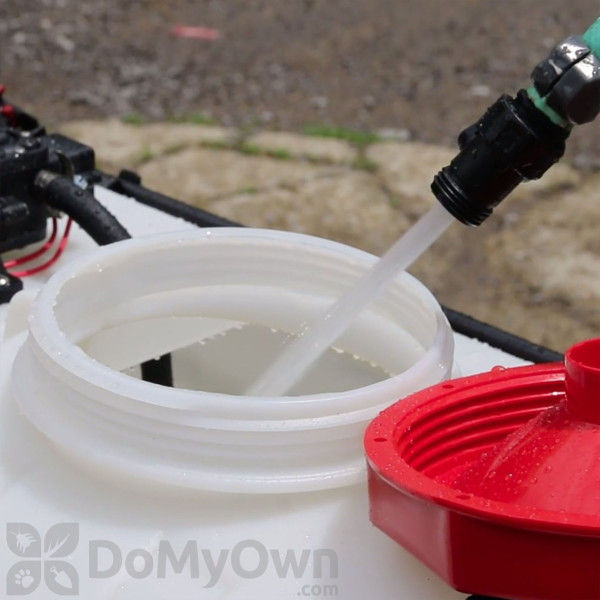

The Chapin 97400E 25-Gallon 12v EZ Mount Spot Sprayer is a sturdy, durable sprayer that quickly and securely mounts to any UTV, ATV, or lawn tractor. It has a five-inch wide opening that allows easy filling and mixing. Has a heavy-duty translucent tank that carries up to 25 gallons. This sprayer features a 12-volt diaphragm pump, an adjustable nozzle, and a shut-off with a lock-on/off feature. It has a maximum vertical spray range of 35 feet and a horizontal spray range of 25 feet. Works best with herbicides, fungicides, fertilizers, and pesticides. Excellent for lawns, parks, and landscapes, as well as disinfection*.

*Can be used for disinfection only when using a diluted mixture of bleach per the CDC guidelines. CDC states: 5 tbsp (1/3 C) of bleach per gallon of room-temperature water or 4 tsp of bleach per quart of room-temperature water.

Product Documents

Features and Specs

For use in Lawns, gardens, landscapes, and disinfection
Application The pumping system draws solution from the tank, through the strainer and to the pump. The pump forces the solution under pressure to the spray wand. Flush with water to clear any accumulated debris.
Dimensions 36.00 x 18.40 x 7.10
Voltage 12V
Tank Size (gal.) 25 gallons
Material / Construction Poly
Hose Length (in.) 15 inches
Wand Length (in.) 18 inches
Pressure (PSI) 40 PSI
Warranty One Year Limited Warranty
Shipping Weight 40.00 lbs
Manufacturer Chapin (Mfg. Number: 97400E)
UPC 023883974008

Details

SPECIAL FEATURES

  • Maximum pressure of 40 psi, 35-ft. max vertical spray and a 25-ft. max horizontal spray;
  • Triple filtration system;
  • Adjustable poly nozzle and shut-off with lock-on/off feature;
  • 18" spray wand.

DIRECTIONS FOR USE

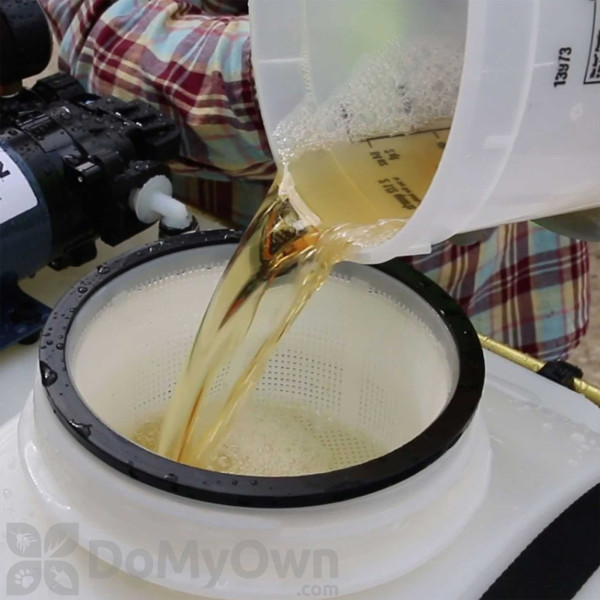

The pumping system draws solution from the tank, through the strainer and to the pump. The pump forces the solution under pressure to the spray wand.The pump has a pressure switch which will shut the pump off when it reaches 60 PSI. Regularly inspect the suction supply screen on the inside of the tank. Flush with water to clear any accumulated debris.

DIRECTIONS AFTER USE

After use, fill the sprayer part way with water. Start the sprayer and allow clear water to be pumped through the plumbing system and out through the spray wand.Refill the tank about half full with plain water and use a chemical neutralizer and repeat cleaning instructions. Flush the entire sprayer with the neutralizing agent. Follow the chemical manufacturer’s disposal instructions of all wash or rinsing water.

WINTER STORAGE

Drain all water and chemical out of sprayer, paying special attention to pump and valves. These items are especially prone to damage from chemicals and freezing weather. The sprayer should be winterized before storage by pumping a solution of RV antifreeze through the entire plumbing. Proper care and maintenance will prolong the life of the sprayer.
