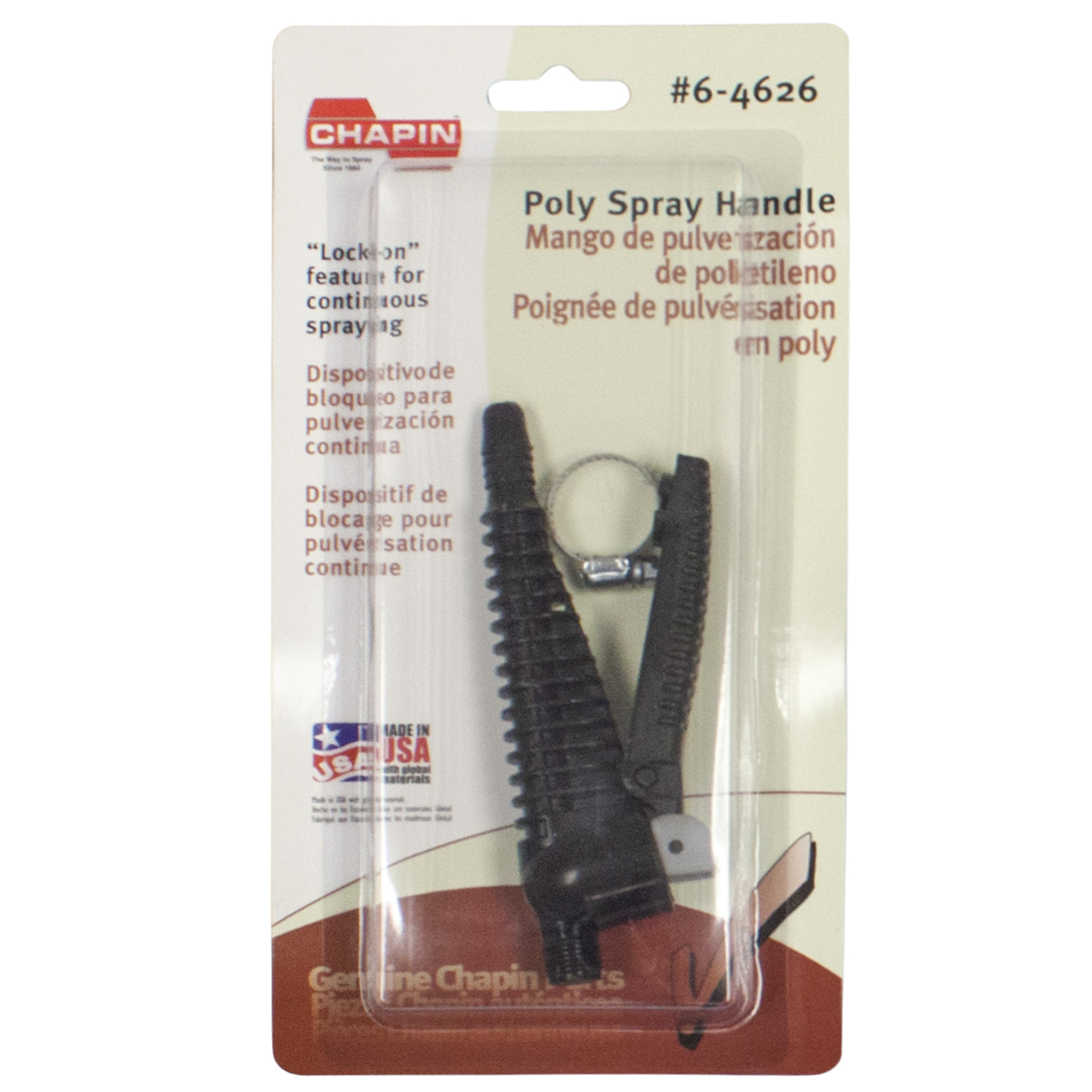

Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626)

3.5 out of 5 stars 2 Reviews | 1 Q&A

Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626)
Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626)
Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626)

Have a Question? Ask Our Pros!

Call Us: 866-581-7378
Mon-Fri 9am-5pm ET
Email Our Pros
We're here to help
Live Chat
Offline. Leave Us a Message

You May Also Need

Advion WDG Insecticide
$9.98

Average Rating

3.5 out of 5 stars Rating: 3.5

2 Reviews | 1 Q&A

Product Overview

The Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626) is specifically designed for Chapin sprayer units. It provides an immediate replacement in case of loss or damage of shut offs in sprayers. Its durable construction is made superb for long lasting efficiency.

This part goes to the following sprayers:

Lawn and Garden Stainless Steel Plus - 2G - Model #31440 UPC #023883314408
Lawn and Garden Tri-poxy - 1G - Model #31410 UPC #023883314101
Lawn and Garden Tri-poxy Steel Sprayer - 3G - Model #31430 UPC #023883314309
Janitorial/Sanitation Poly Sprayer - 1G - Model #2608E UPC #023883026080
Poly Janitorial/Sanitation Sprayer - 3G - Model #2610E UPC #023883026103
Poly Sprayer - 2G - Model #2609E UPC #023883026097

Features and Specs

For use in Chapin sprayer models 31440, 31410, 31430, 2608E, 2610E and 2609E.
Dimensions 6.2 x 19.4 x 2.2
Material / Construction Poly construction
Shipping Weight 0.14 lbs
Manufacturer Chapin (Mfg. Number: 6-4626)
UPC 023883646264

Details

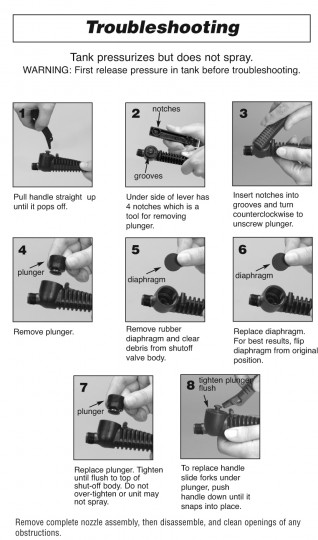

TROUBLESHOOTING

Tank pressurizes but does not spray.

WARNING: First release pressure in tank before troubleshooting.

1. Pull handle straight up until it pops off.

2. Under side of lever has 4 notches which is a tool for removing plunger.

3. Insert notches into grooves and turn counterclockwise to unscrew plunger.

4. Remove plunger.

5. Remove rubber diaphragm and clear debris from shut-off valve body.

6. Replace diaphragm. For best results, flip diaphragm from the original position.

7. Replace plunger. Tighten until flush to top of shut-off body. Do not over-tighten or unit may not spray.

8. To replace handle slide forks under plunger, push handle down until it snaps into place.

Remove complete nozzle assembly, then disassemble, and clean openings of any obstructions.

5 stars   1
4 stars   0
3 stars   0
2 stars   1
1 star   0

  • 5 of 5 Stars

    Chapin replacement part

    By Karin on 07/24/2017

    I have a very old Chapin back pack sprayer that needed a new shut-off assembly. I couldn't find one in the stores. New back packs are expensive and they no longer make the Chapin I have. So I went online and found the exact part that needed replacing! And shipping was fast! Good company.

    Was this review helpful to you?  YesNo

    1 of 1 people found this review helpful

  • 2 of 5 Stars

    Good

    By Ben on 07/31/2020

    Took forever to receive it, and it wasn’t the correct part once I got it (which was my fault). Wasted time and money. I bought a new sprayer for what the part cost, which obviously I should have done in the first place

    Was this review helpful to you?  YesNo

See all 2 customer reviews

Questions & Answers

Have a question about this product?

Q
Will the Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626) fit my Chapin model 22350 sprayer?
A

The Chapin Replacement Poly Shut-off Assembly for Chapin Sprayers (6-4626) will not fit the Chapin model 22350 sprayer.  According to Chapin, the part number you need for the 22350 is 6-4638.

Was this answer helpful to you?  YesNo
