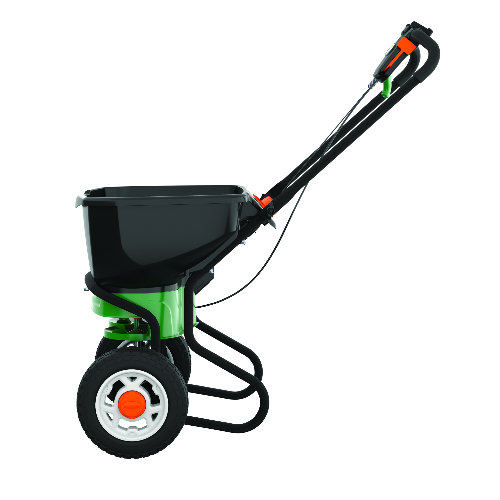

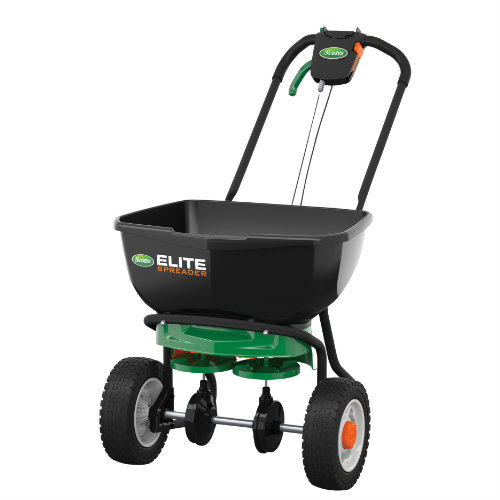

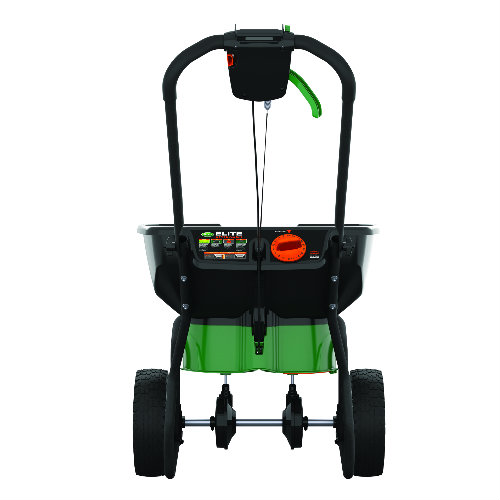

Product Overview

Scotts Elite Spreader with EdgeGuard is specifically designed to make every application faster and easier. It provides accurate and advanced spreading of feeds and seeds and also prevents weeds in lawns. May be used as ice melter during winter. This durable spreader features a dual rotor technology which offers convenience because of its 6 feet spread pattern. It comes with 10-inch foam-filled, never-flat tires that are perfect for any terrain, especially rough and bumpy surfaces. User-friendly with its ergonomic handle that includes a smartphone holder and its hopper has a large capacity of up to 20,000 square feet. It has an EdgeGuard Landscape Protection System which prevents fertilizers from being thrown onto sidewalks and other non-lawn areas. To ensure equal distribution of the product, allow few feet in between passes. For spreading coarse rock salt, remove agitator pins.

Features and Specs

For use in: Feed, seed, weeds, and ice melts.
Application: Turn rate control to correct setting. Spreader width is 6 feet, so allow a few feet in between passes to ensure even distribution. When Edgeguard is engaged it will block off the right side of spreader pattern.
Yield: Holds up to 20,000 square feet of product.
Dimensions: 23.3125" x 20.063" x 23.625"
Material / Construction: Stainless steel.
Special Features: Has dual rotor technology.
Shipping Weight: 30.00 lbs
Manufacturer: Scotts (Mfg. Number: 75902)
UPC: 032247759021

Details

How to Assemble Your Elite Broadcast Spreader:

  • Remove spreader and hardware kit from the box. Check to make sure you have all the parts.
  • Slide one wheel onto each end of the axle. The left side of the axle has a pin — make sure the pin fits into the slot on the wheel.
  • Slide one washer onto each end of the axle.
  • Insert one cotter pin into the hole at each end of the axle. Bend the cotter pin legs around the axle so the wheels are secure.
  • Snap the hubcaps onto the tires.
  • Recycle all cardboard material.

How to Use Your Elite Broadcast Spreader:

  • Raise the handle, and tighten wing nuts by hand.
  • Turn the orange rate control dial to the correct setting listed in this instruction pamphlet.
  • Fill the spreader over a patch of bare ground or driveway/sidewalk. Do not fill spreader on the lawn. Clean up any product that spills onto hard surfaces.
  • To apply the product, begin walking, then squeeze and hold the trigger.

Note: To avoid potential lawn damage, always push spreader in a forward motion when applying fertilizer. Release trigger at turns or when you stop. The EdgeGuard® Landscape Protection System blocks of the right side of the spread pattern to prevent the product from spreading onto non-lawn areas.

How to Apply:

  1. Make perimeter pass with EdgeGuard® on to protect non-lawn areas.
  2. Make parallel internal passes 6 ft. apart to ensure even coverage.
  3. Release trigger when making turns or when you stop.

Maintenance:

  • Never leave the unused product in the spreader. Pour leftover material back into the package and seal package tightly.
  • If product lands on any hard surface such as a driveway, sidewalk, or road, sweep the product back onto the lawn to keep it from being washed into the storm sewers and ultimately surface waters.
  • Wash spreader thoroughly after use, including the underside, and allow to dry before storing.
  • Periodically spray lubricant on all rotating parts to ensure smooth operation and to extend life.
  • Do not allow product and/or rinse water to enter storm drains or sewers.

Healthy Lawn, Healthy Environment:

Feed your lawn regularly. Fertilizer applied at the right time in the right amount can have a significant impact on the health of your lawn. When combined with proper mowing, thick, healthy lawns crowd out weeds. Healthy lawns are better able to tolerate insects, drought, heat, and other environmental stresses.

Keep the environment healthy by following proper safety procedures. Apply only to the lawn. When fertilizer is left on driveways, sidewalks, or patios, rain or watering can ush the stray particles into the street, where it eventually makes its way to storm drains and surface waters.

Leave the grass clippings on your lawn. Leaving grass clippings on your lawn recycles plant nutrients back into the soil. Clippings contain the same beneficial nutrients as fertilizer. Sweep or blow clippings from hard surfaces back onto the lawn where these benefits can be realized.
