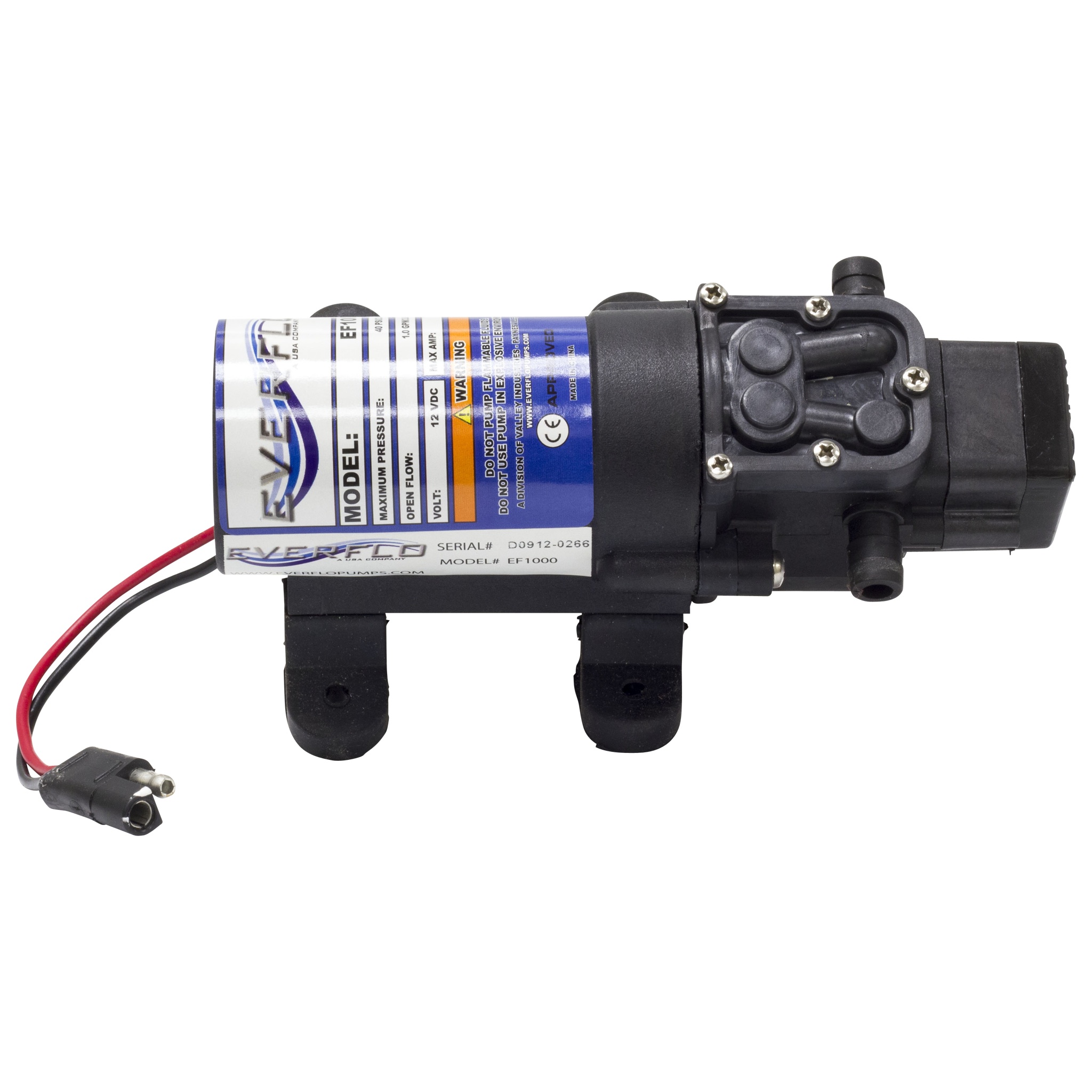

Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX)

5 out of 5 stars 1 Reviews | 6 Q&A

Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX)
Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX)

Ask A Pro

Call Us: 866-581-7378
Mon-Fri 9am-5pm ET
Email Customer Service
For help with your order
Live Chat
DIY Pros Available Now

You May Also Need

Temprid FX 8 mL
$9.98

Average Rating

5 out of 5 stars Rating: 5

1 Review | 6 Q&A

Product Overview

Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX) is a pump created by Everflo. The model is EF-1000-BOX. This can be a replacement for many different agricultural sprayers and fluid transfer applications, except for pumping fuels.12 Volt Diaphragm Pump, 1 GPM has various use options including - boating, RV's, along with tree, lawn, fence, garden, and livestock spraying. It is self priming up to 4 feet.

Features and Specs

Voltage: 12 Volt
Pressure (PSI): 40 PSI (2.8 Bar) Max
Shipping Weight: 1.70 lbs
Manufacturer: Master MFG Sprayers (Mfg. Number: EF1000-BOX)
UPC: 814485010399

Details

Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX) has the following specs:

  • Polypropylene pump housing and valve plate
  • Viton Valves – Santoprene Diaphragm
  • Zinc Plated Steel fasteners
  • Polypropylene 2” Motor Shell
  • Honeywell Micro Switch™
  • 40 PSI (2.8 Bar) Max
  • 1.0 GPM (3.8 LPM) Max
  • Round-Up Ready
  • Self Priming to 4 Feet
  • Max Fluid Temp 140 Deg F
  • 12V DC
  • 4.0 Max Amps
  • 3/8” Barb
  • CE Approved*
  • 1.3 lbs Dry
  • Inline Fuse Protection
5 stars   1
4 stars   0
3 stars   0
2 stars   0
1 star   0

  • 5 of 5 Stars

    CUSTOMER SERVICE

    By Michael on 06/04/2018

    Ordered this pump and some fertilizer and they were at my door in about 4 days. Installed the pump and it did not work called and talked to Sally who said they would ship one immediately and it arrived in two days and worked fine. I can not say enough about Sally who handled this she was just great.

    Was this review helpful to you?  YesNo

    1 of 1 people found this review helpful

Questions & Answers

Have a question about this product?

Q
Is the Master MFG 12 Volt Diaphragm Pump 1GPM on demand?

Meaning does it shut off at a predetermined pressure and then turn on again when the pressure drops? My present Dobbins sprayer has the on demand motor. (A pressure switch is built into the pump end of the motor.) I am looking for an exact replacement.

A

Yes, the Master MFG 12 Volt Diaphragm Pump 1 GPM is an on demand unit. Per the manufacturer it will shut off at 40PSI and then cut back on again once it drops back down below that once again.

Was this answer helpful to you?  YesNo

1 of 1 people found this answer helpful

Q
is it on damand
A
I'm sorry but we don't understand exactly what you are asking. Please provide us with a more detailed question and we would be more than happy to help.

Was this answer helpful to you?  YesNo

0 of 3 people found this answer helpful

Q
How can I fix the noise from the Master MFG 12 Volt Diaphragm Pump 1GPM when it is operating?

Use is for ventilation control in cab of M.H

A

Master MFG 12 Volt Diaphragm Pump 1GPM  has not had very many complaints as far as being noisy. We would recommend to first contact Master MFG 800-864-1649 for the best help trouble shooting this noise issue.

Was this answer helpful to you?  YesNo

0 of 1 people found this answer helpful

Q
Will the pump continue to run when the hand sprayer nozzle is closed and the pressure is back to peak?

I am wondering if I am using this pump for a hand nozzle application purposes, will the pump run non stop or will it turn itself on only when I am squeezing the handle and requesting it too? Does it have an internal pressure shut off? Thanks

A

This is really a question beyond of knowledge of the product as it is not an intended use of the Master MFG 12 Volt Diaphragm Pump 1GPM.  It would be best to contact the manufacturer directly for the answers to your questions.  Master MFG can be reached at 800-864-1649.

Was this answer helpful to you?  YesNo

0 of 1 people found this answer helpful

Q
Can I buy just the diaphragm for the Master MFG 12 Volt Diaphragm Pump?

The pump works when set to the ground/trailer setting, but won't work on the pressure side and the spray gun.

A

We apologize but do not have just the diaphragm portion of the Master MFG 12 Volt Diaphragm Pump 1GPM (EF1000-BOX) available.  You may try reaching out to the manufacturer for troubleshooting your current pump, or for replacement parts.  Master MFG can be reached by calling 800-864-1649.

Was this answer helpful to you?  YesNo

See all 6 customer questions

$41.28 + Free Shipping*
