Product Overview

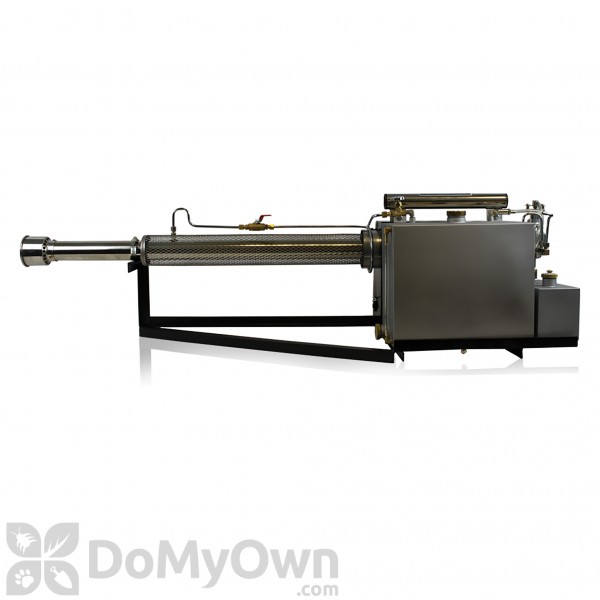

The VectorFog H300SF Quad Bike Mounted Thermal Fog Machine is intended to be fitted to the back of an ATV Four Wheeler or small vehicle to apply water or oil based solutions, and is the perfect fogger for a fast dispersal of insecticides or disinfectants on farms or small towns. This fogger machine will allow someone to handle any project, from animal health disinfection and plant protection, along with the control of vector carriers of diseases and pests. The H300SF model fogger has been manufactured using high quality stainless steel, providing the owner with years of performance and durability. Some of the features include a 3.6 gal (13.5 L) solution tank, auto start, and an flow rate of 13 GPH (50 LPH) for oil based solutions. It can also be custom built to fit customer’s specific requirements.

The VectorFog fogging equipment is used primarily for the application of biocides, disinfectants, pesticides and fungicides. VectorFog foggers create a mist or fog that forms an Ultra-Low Volume (ULV) droplet that is between 5-30 microns in length. Studies have revealed that these sizes of droplets are perfect to handle vector carriers of diseases, pathogens, and pests. Also, solutions may be applied in concentrations of 10-90%, and with flow rates of over 15.8 gallons per hour (GPH) making them more efficient foggers. The H300SF has a fuel tank capacity of 2.5 quarts (2.4 L) with a fuel consumption rate of 1.9 quarts per hour (1.8 lph).

Features and Specs

For use in: Commercial: Farms, Warehouses, Small Towns
Application: * See Video Above
Dimensions: 55.00 x 13.00 x 17.00 inches
Coverage Area: Spray distance: 65 to 82 ft.
Spray distance with water base: 29 ft.
Voltage: 110v or 220v
Color: Black tank, Stainless Steel body
Sprayer Type: Thermal Fogger
Tank Size (gal.): 3.60 Gallons (13.5 L)
Material / Construction: Stainless Steel
Spray Pattern: Fogger/Mist
Pressure (PSI): Solution tank pressure: 2.13 PSI (0.147 bar)
Special Features: Fits on Back of a Small Vehicle
5-30 Micron Droplets
13 GPH Speed
Warranty: One Year Warranty against factory defects
Parts Included: Tool Kit, Battery Charger
Shipping Weight: 44.00 lbs
Manufactured By: VectorFog (Mfg. Number: H300SF)

Details

SF Technology

The SF thermal foggers are designed for the application of water or oil based solutions. VectorFog SF unique and patented Dual-Point inlet technology, these foggers are one of the most versatile and durrable foggers in the market today. Simply turn a valve to switch between water and oil based fogging. For 2014 the SF Series foggers will also come with additional options including a manual start only, auto start (standard), and dual start. A materials option will also be available for 2014, including an all stainless steel option for applying more corrosive chemicals.

DOD Test

For 2014 the H200SF was tested by the US Navy Entomology Center to evaluate the droplet size of the VectorFog SF Series machines in the Volume Medium Diameter (VMD) spectrum. Using a laser diffraction spectral analyser usder DV 0.5 conditions, the VectorFog H200SF showed to perform considerably better than Chinese brands, and slightly better than brands from Germany. These SF Series foggers also came on top in the water fogging test, achieving the smallest droplet size of all the thermal foggers ever tested by the DOD.

Damage package/product information: If you receive a product or package that is damaged, please call customer service at Vector Fog at 1-844-780-6711. They will be able to assist you.

Replacement parts are available for purchase. Please call our customer service at Toll Free: 866-581-7378 or email us and we will help you. Please find our email link at the "contact us" button above.
