The B&G Aerosol Delivery Unit, BASF Compatible - ADUWM (24000050) is an innovative product that helps you apply aerosol to any desired surface. Everyone knows the frustration that comes when you can not spray an area because the can won't work when it is upside down. That's where B&G's professional Aerosol Delivery Unit comes in. The unit snaps to compatible aerosol cans, which include BASF, and EcoSMART products, without any pesticide leakage. The product also stops leakage with its on/off valve and sure seal desgin. The holster keeps the can right side up, giving you the flexibility with the product's 6 ft hose to apply to any surface that would have been unaccessible before. This equipment works with aerosol cans.

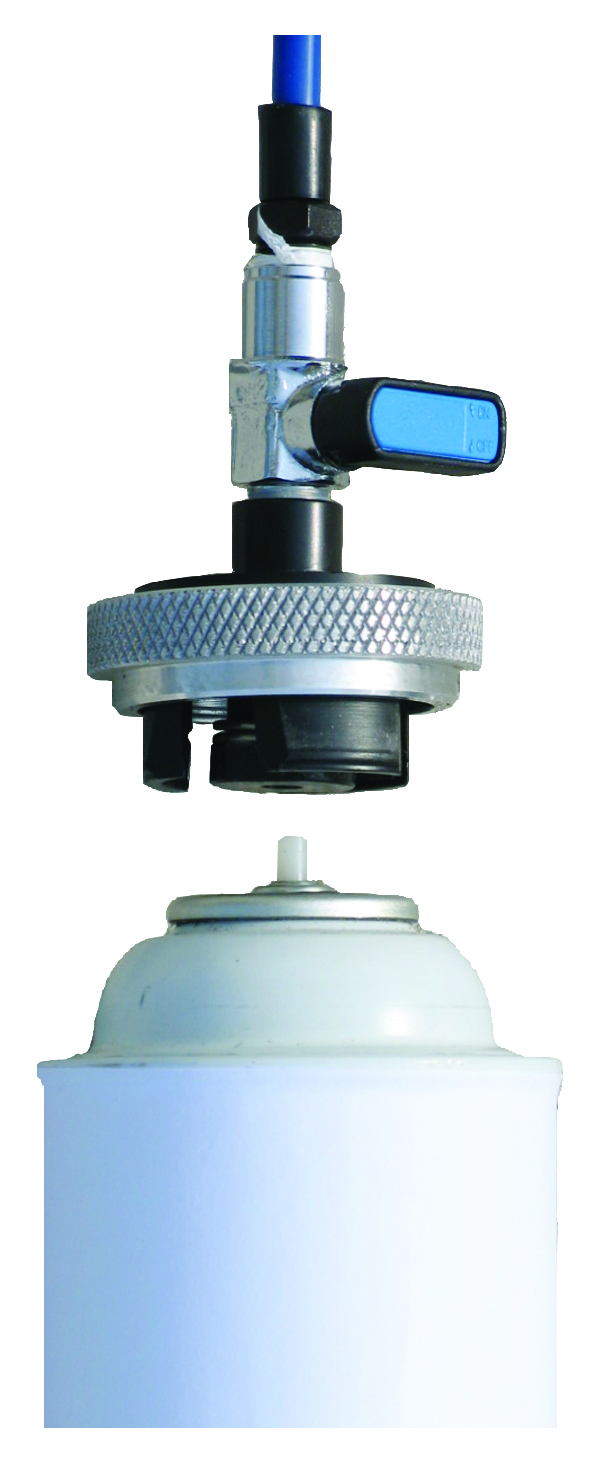

Place Input Nozzle onto Top of Aerosol Can Twist Nozzle to Lock Place Aerosol Can in Holster
Works with EcoSMART and BASF products Promotes professional image Quickly snaps on can with no leaking of propellant Easy to use on/off valve 6 ft. Coiled Hose Sure seal design and no continual seal replacement necessary
Handle Repair Kit Hose Assembly, Modified Ball Vale, Complete Handle Assembly, Can Clamp Assembly, Capitulator Assembly, Aerosol Can Holster
Use only with a conventional, hand-held aerosol can.
Do not attach or spray if the aerosol can is leaking.
Do not inject aerosol into electric outlets or cable boxes.
Turn valve to ‘Off’ (horizontal) position when can is not in use.
Disconnect the delivery system when the aerosol can is empty of liquid.
When detaching the delivery system, first turn valve to the Off position (horizontal), pull up on the lock ring, then lift unit off the can.
Only use the recommended unit with the proper aerosol.
This delivery system can be used with hand-held aerosol cans to apply solvent– or water-based insecticides. Treatment sites include exposed surfaces, cracks-and-crevices, and voids recommended by aerosol product labels.
Inspect the coiled hose for breaks
Inspect the junction between the coiled hose and the spray handle, and the coiled hose and the On/Off valve
Turn valve to Off (horizontal) position
Inspect spray tip and crack-and-crevice straw for dirt and obstruction
Connecting The Unit
The aerosol can must be upright and on a level surface
Remove the spray tip from the top of the aerosol can to expose the short plastic stem
Center the Aerosol Unit above the stem, then push down firmly to insert the stem into the bottom of the Unit
Push down the lock ring to secure the Aerosol Unit to the top of the can
Attach the spray tip from the aerosol to the short stem on the application handle
Turn the valve to the On position (vertical) to permit fluid from the can to full the coiled hose
Disconnecting The Unit
Before disconnecting the unit, be certain the aerosol can is empty
Turn valve to the Off position and empty the hose by spraying into an approved location
With the valve in the ‘Off’ position, pull up on the locking ring, then lift the canister clamp straight up and off the can
Care and Maintenance
Keep the Unit away from extreme heat and sharp edges that can damage the hose.
Always use the spray tip supplied with the aerosol can
Replace Unit when hose, valve, or locking ring are damaged
