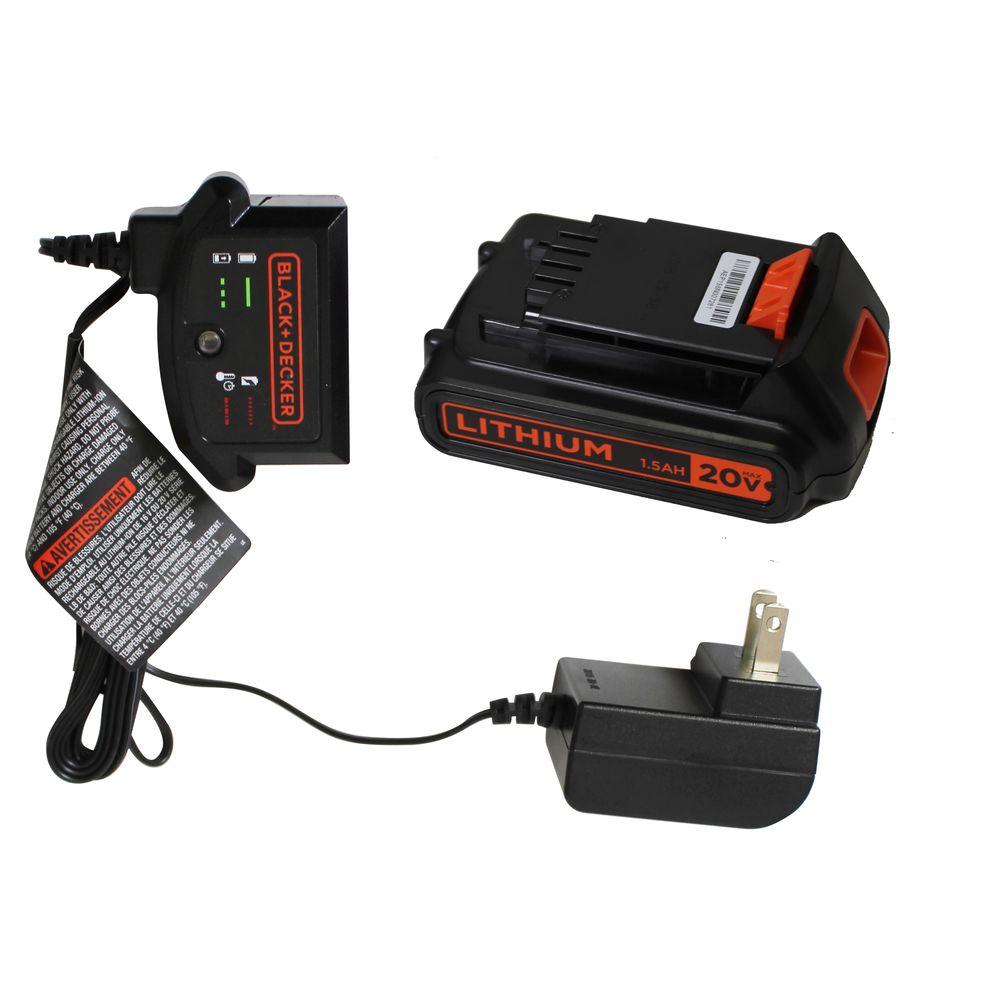

The Chapin 4 Gallon 20v Wide Mouth Backpack Sprayer 63985 features a 20-volt Black & Decker Lithium Ion battery with a battery charger. It produces 1.75 hours of continuous spraying, that’s up to 50 gallons! It produces 35 to 40 PSI with a 35-foot maximum horizontal spray stream. It also has a 6-inch wide mouth funnel for easy filling and cleaning with a carrying handle built right into the cap. This sprayer weighs 39% less than competitive units. Santoprene seals in the pump offer maximum chemical resistance. Cushion grip shut-off with built-in, serviceable filter to assure that no debris can clog the nozzle tip. Deluxe padded straps offer comfort for prolonged use. Durable and long-lasting with regular cleaning. Additional batteries and chargers are available through Black & Decker.
This sprayer is the same sprayer as Chapin Backpack Sprayer 4 Gal. 20V Lithium Black & Decker Battery (63980) except for the lid color and writing on the front.
Product Documents
| For use in |
Commercial & Residential: Indoors & Outdoors Insecticides, Fertilizers, Fungicides, Herbicides |
|---|---|
| Application | * See manual for complete application instructions |
| Dimensions | 14.75 L x 9.0 W x 21.9 H and 12 lbs. |
| Voltage | 20v |
| Color | White |
| Tank Size (gal.) | 4 Gallon |
| Material / Construction | Poly |
| Spray Pattern |
.4 to .5 GPM Adjustable Brass Cone, Poly-Fan, Poly-Cone |
| Seal Type | Viton |
| Hose Length (in.) | 48 in. |
| Wand Length (in.) | 20 in. |
| Pressure (PSI) | 35 - 40 PSI |
| Special Features |
6 inch Wide Mouth Poly Cushion-Grip 20v Lithium ion Battery 23 Feet of Vertical Spray 35 Feet of Horizontal Spray 1.75 Spray Hours Per Charge 3 Stage Filter |
| Warranty | 2 year limited warranty |
| Shipping Weight | 11.10 lbs |
| Manufacturer | Chapin (Mfg. Number: 63985) |
| UPC | 023883639853 |
Chapin 20v Backpack sprayers
By Tom on 04/12/2020
LCN approved!
By Eric on 05/04/2018
so far, so good
By Rob on 05/25/2018
Very happy with performance after using sprayer on 2 different occasions. Maybe I'm lazy but I like the fact that spray has same power output because of battery versus pump that slows down as pressure fades. Also backpack capacity over my 1 gal sprayer better for almost half acre property
Was this review helpful to you? YesNo
9 of 9 people found this review helpful
Backpack Sprayer 63985
By Gary on 05/22/2020
Working great for almost 3 years now
By Bob on 01/25/2021
Verified Purchase
I bought this on a recommendation from The Lawn Care Nut. I love this sprayer. I use it for blanket apps of liquid fertilizer, herbicide and pesticide on the lawn as well as treating the perimeter of the house with pesticide. I have had it for almost 3 years and it is still running great.
Was this review helpful to you? YesNo
1 of 1 people found this review helpful
We are sorry that you are having trouble with your Chapin 4 Gallon 20v Wide Mouth Backpack Sprayer! You should hear the battery running while the unit is turned on, but you should be able to control the spray using the handle to stop and start the flow of liquid from the handle. If something is getting caught in the handle, then you may need to give Chapin a call directly to troubleshoot this issue. You can reach them directly at 800-950-4458. Please let us know if you have any trouble contacting them or need further assistance.
Was this answer helpful to you? YesNo
3 of 4 people found this answer helpful
The Chapin 4 Gallon 20v Wide Mouth Backpack Sprayer 63985 should use the lithium battery suggested by Chapin. The 20V replacement battery is to be used in the Chapin Backpack Sprayer 4 Gal. 20V Lithium Black & Decker Battery (63980) also.
Was this answer helpful to you? YesNo
1 of 4 people found this answer helpful
In the summer sun the plastic wand curls into a "C" shape.
The only replacement wand for the Chapin 4 Gallon Backpack Sprayer 63985 is the plastic wand, part 6-8219. Be sure you are storing your sprayer empty, clean, and out of direct sunlight and extreme heat to prevent damage. We have other backpack sprayers like the Chapin 62000 that do have metal wands, if needed.
Was this answer helpful to you? YesNo
1 of 1 people found this answer helpful
The Black and Decker charger that comes with the Chapin 4 Gallon 20v Wide Mouth Backpack Sprayer 63985 is a 110V charger. It is not available in 220V.
