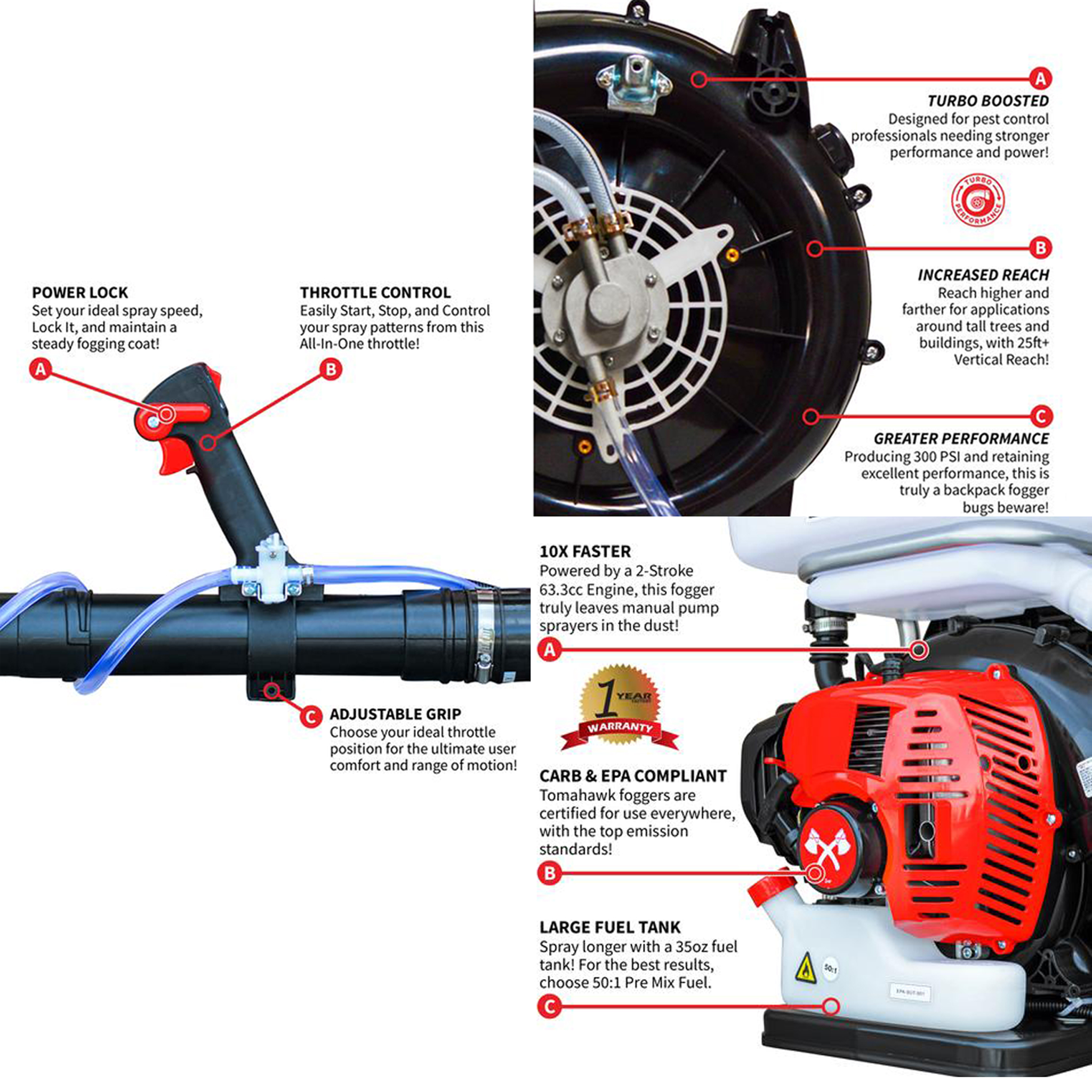

Tomahawk Power Mist Blower TMD14 with Turbo Boost

FUELING

• This engine is certified to operate on unleaded gasoline and two-stroke engine oil at a mix ratio of 50:1.
• This engine requires a mixture of high-quality gasoline and two-stroke air-cooled engine oil.
• Use mid-grade unleaded gasoline with a minimum octane rating of 91 and no more than 10% ethanol content.
• Keep the fuel tank far away from flames or sparks. Do not smoke near fuel.
• When adding pre-mixed fuel to the engine, use a funnel to avoid spillage.
• When the machine is running, do not add more to the fuel tank.
• Open the fuel cap carefully to allow and pressure build-up in the tank to release slowly and avoid fuel spillage.
• At the end of a season, drain all fuel from the gas tank and use a fuel stabilizer to ensure a clear carburetor for your next season.

STARTING AND STOPPING YOUR ENGINE

When starting the engine make sure the engine is fueled and the water tank prepped for spraying.

1. Push the throttle lever to the on position marked (I).
2. Prime the engine 4-5 times, or until fuel is visibly passing through the fuel lines.
3. Move the choke to the closed position.
4. Pull the recoil starter until the engine fires.
5. After the engine starts, slowly move the choke to the open position.
6. . Let the engine idle for several minutes and then begin spraying.
7. Open your water valve to start the flow of liquid pesticide and begin spraying.

Stopping Your Engine:

1. Move the water valve to the closed position to stop the flow of liquid pesticide.
2. Move the throttle lever to the down position (O) to stop the engine.
3. Move the choke to the closed position.
