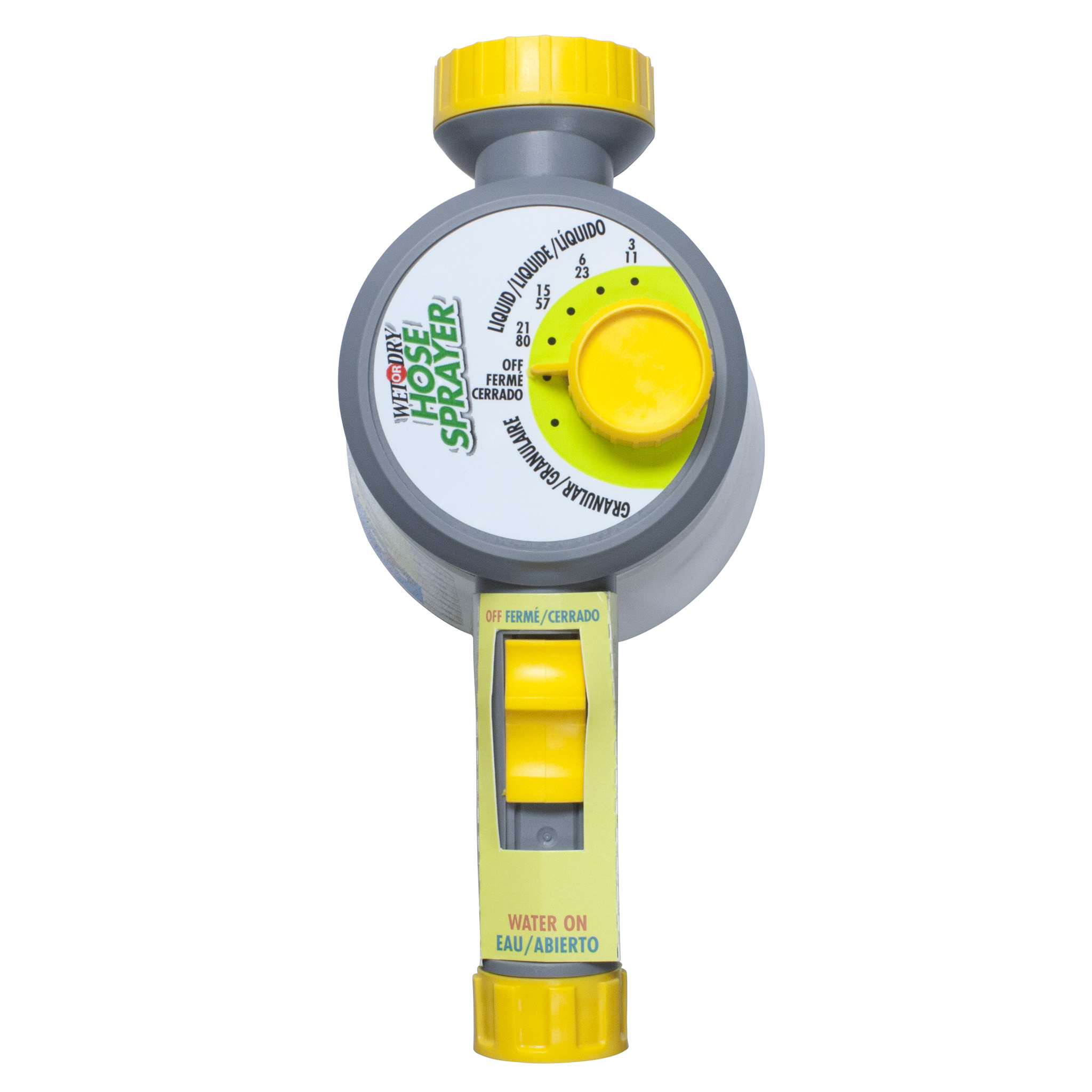

Chapin Wet / Dry Hose-End Sprayer #6005

The Chapin Wet / Dry Hose-End Sprayer #6005 is one of the easiest hose-end sprayers we've ever sold. Use both liquid lawn and garden chemicals as well as water soluble granules in this sprayer. The large dial on the top can be turned to the liquid side that will mix from 3 gallons to 21 gallons of liquid chemicals or turned to the granular side for dry granules.  The most important feature is that this #6005 comes with a diptube/straw that is attached to the sprayer. It must be used when the dial is turned to liquid use and must be removed when dial is turned to dry use. It cannot be used when spraying dry granular substances. The large holding container will allow you to spray from 3 to 21 gallons of mixed solution with just one fill! It will allow from 1 1/4 pounds to 2.5 pounds of dry granular. The Chapin 6005 is simple to use, durable, and includes 3 spray patterns: bullet, flat spray or gentle shower. Also features an insulated comfort grip handle with a thumb slide on/off control. Simply attach to the end of a garden hose and the Chapin 6005 mixes just the right amount of pesticide with the water being dispersed. This sprayer is ideal for applying large volumes of pesticide to lawn or garden.

 Instructions:

The Straw/Diptube must be used when spraying liquid and cannot be used when spraying dry granular material.

1. When the liquid side of the dial is used, the straw/diptube must be attached.
2. When the dry side of the sprayer is used, the straw/diptube must be removed.

Filling Instructions:

1. Unscrew jar from sprayer.
2. If using granules, remove straw from sprayer. If using liquid, make sure straw is attached to nipple on underside of sprayer.
3. Place jar on flat surface. Pour in amount of liquid that will provide the amount of product you want. (Multiply the parts per liter/gallon shown on the product label times the number of liters/gallons you wish to make.)
4. Rotate product dial to desired setting. In the case of granules, you may use any quantity in the jar you wish.

Guide:

Liquid Side:

• 11.4 liters/3 gallons
• 22.7 liters/6 gallons
• 56.8 liters/15 gallons
• 79.5 liters/21 gallons

Granular Side:

• 560 grams/1 - 1/4 pounds
• 1130 grams/ 2-1/2 pounds

Instructions For The Dry/Granular Side:

1. Remove sprayer from bottle and take straw off nipple on bottom of sprayer.
2. After removing straw, fill bottle with granules to the manufacturer's recommendation for coverage. Use the handy scale on the side of the label as a guide. Put sprayer back onto the bottle.
3. Screw sprayer on hose end using the convenient hose swivel. Make sure thumb switch on top of the handle is pushed all the way FORWARD. This is the "OFF" position.
4. Dial your product knob counterclockwise to the "granule" setting on the dry side of the dial. Select the spray pattern you wish to use by turning the head on the front of the sprayer. Be sure water switch is in the forward or "OFF" position.
5. Turn on water spigot or faucet for hose. Be sure thumb switch is in the "OFF" position.
6. Slide thumb switch back as far as it can go to the "ON" position. Water will exit sprayer and begin to mix and fill jar with granules in it. This creates a mix which will begin to exit sprayer when jar contents are full. NOTE: color of granules will appear dark in color when you begin and then lighten in color. When the jar is clear, you are done. Unscrew the jar and dump contents on your plant. Follow the manufacturer's instructions for coverage.
7. Some products other than granules will not flow through a regular liquid type sprayer because they are too coarse. A clog free sprayer is the only way to spray them. Fish emulsion, liquid iron, liquid sulfur, or liquid lime are good examples. Just switch the setting on the "DRY" side and follow the same directions outlined.
8. When the product selector knob is in the "OFF" position, you may use your WET OR DRY SPRAYER as a watering tool for your plants.

Instructions For The Liquid Side:

The liquid side must always be used with a straw/diptube as this is a powerful and very accurate venturi system which draws liquid product through a small opening and mixes it with the water passing through.

• 1. Remove lid and make sure straw is on the nipple on the bottom of the sprayer.

YOU MUST HAVE A STRAW WHEN USING LIQUID PRODUCTS.

• 2. The liquid side is unique but simple. It is designed to provide you with various quantities of properly mixed liquid for various size jobs. So, you must first select the number of liters/gallons of product for the area you want to spray.

 There are four selections:

• 11 liters/3 gallons
• 23 liters/6 gallons
• 57 liters/15 gallons
• 80 liters/21 gallons

This means when you are out of product in the jar, you have sprayed the total liters/gallon of mixed product you have selected.

• 3. After determining your needed liters/gallons quanitity, multiply the number of liters/gallons desired times the quanitity per liters/gallons recommended by the manufacturer. Pour this quantity directly into the jar.
• 4. Fill the jar with water to the line that represents the total liters/gallons you want to spray.
• 5. Turn selection knob to the desired liters/gallons of spray setting. DO NOT TURN WATER ON WHEN ADJUSTING SPRAY NOZZLE.
• 6. Select desired spray pattern.
• 7. Spray until empty.
• 8. Let's say you want to make and spray 57 liters/15 gallons of properly mixed product. The manufacturers label tells you to use .25 milliliter per liter/one ounce per gallon, you pour 110 milliliters/15 ounces of product into the jar. Then you pour water into the jar until the combined liquid level reaches the 57 liter/15 gallon mark which is on the jar. Put sprayer on the jar and be sure dial is on the correct liter/gallon setting. When the sprayer is empty, you have sprayed 57 liters/15 gallons of properly mixed product.
• 9. Clean sprayer and jar by rinsing jar and filling partially full of clean water and spraying until empty. If particles are stuck and exit hole is blocked, carefully poke needle or straight pin through hole in bottom of sprayer at each setting. Sometimes shaking the sprayer will suffice or the use of fast repetitive water burst (on-off).
• 10. When the product selector knob is in the "OFF" position, you may use your LIQUID & CLOG FREE SPRAYER as a watering tool for your plants.
