ASSEMBLY INSTRUCTIONS

Approximate assembly time is 5-10 minutes.

Suggested Tools:

Wrench and/or Ratchet Set

• Remove bottom bolt from each side of handle (below thumb nuts Figure A).

• Loosen thumb nuts on top bolts (Figure B) and flip up handle.

• Replace bolts below thumb nuts and tighten down.

• Tighten all 4 thumb nuts completely.

• Note: If spring detaches from bail assembly, simply re-attach (see Figure C).

GENERAL OPERATING INSTRUCTIONS

• Be sure gate control is in the closed position (do not hold bail down when filling ).
• Determine appropriate setting for material being used by reading the suggested setting on the material’s bag AND/OR by referencing the application chart on your spreader’s control panel (Charts provided are only guidelines. Be sure to read the instructions on the bag/box of the material you’re spreading to identify accurate setting needed).

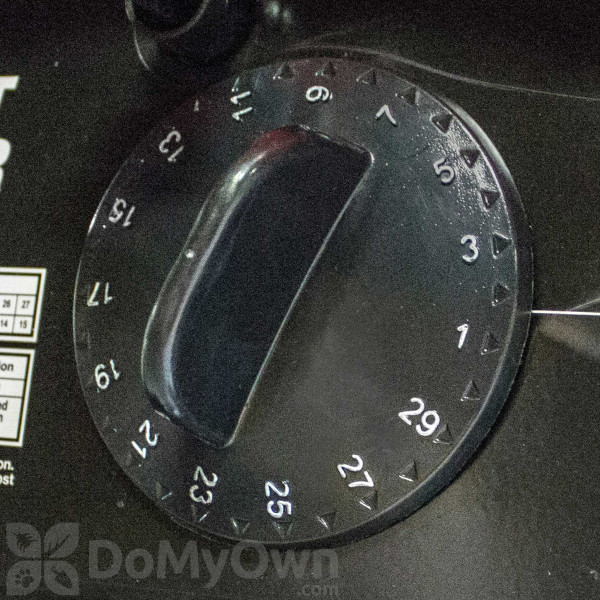

• Set the dial to the desired setting. Important Note: Do not adjust dial while holding bail down and gate is open. This will alter the accuracy of gate settings and cause parts to break.
• To begin spreading, start walking (about 3 mph pace) and pull the bail system down to open gate.
• To stop spreading simply let go of the bail and the gate will close

BAFFLE OPERATING INSTRUCTIONS

• Adjust baffle by hand to block distribution accordingly.

• Use wing nuts to adjust tension on baffle.

STORAGE AND MAINTENANCE

• When finished spreading empty hopper of any remaining material.

• Thoroughly wash spreader and allow to dry before storing.

• To fold down handle:

  - Simply remove the bottom two bolts on the handle.

  - Loosen two thumb nuts and fold down handle.

  - Replace two bottom bolts.

  - Tighten thumb nuts completely.
