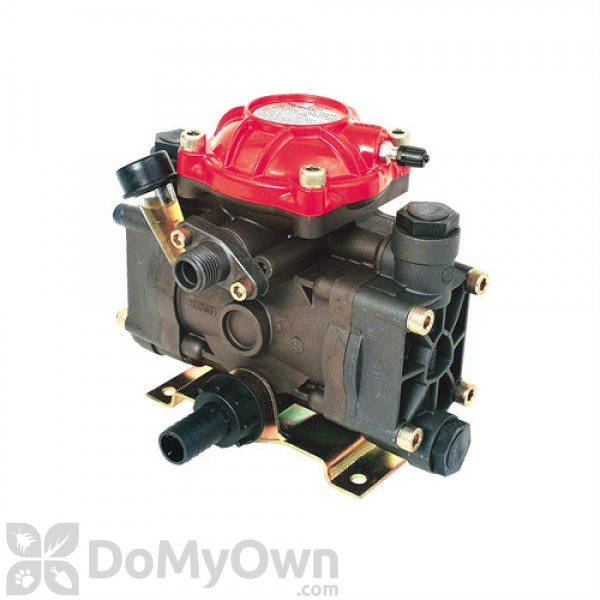

Hypro 9910-D252GRGI Diaphragm Pump

Hypro 9910-D252GRGI Diaphragm Pump

Have a Question? Ask Our Pros!

Call Us: 866-581-7378
Mon-Fri 9am-5pm ET
Email Our Pros
We're here to help
Live Chat
DIY Pros Available Now

You May Also Need

Hypro 4101C Roller Pump
$146.56
Temprid FX 8 mL
$9.98

Average Rating

There are no reviews for this product yet. Be the first.

Product Overview

The Hypro 9910-D252GRGI is a medium pressure diaphragm pump which is perfect for a wide range of spraying jobs and applications. It delivers up to 6 GPM and 290 PSI so it is recommended for application of pesticides, herbicides, liquid fertilizers, and other difficult to handle fluids. It is constructed of anodized aluminum which is guaranteed chemical-resistant. It can be adapted for male and female 1-3/8 in. splined shaft, 1 in. solid shaft, as well as gear reduction drive option. It also includes a pulsation dampener.

Features and Specs

For use in Residential, Commercial and Industrial Sites
Material / Construction Anodized Aluminum
Seal Type Viton Seals
Pressure (PSI) 290
Special Features Chemical-resistant materials
Warranty One Year Limited Warranty against factory defects
Shipping Weight 12.00 lbs
Manufacturer Pentair/Hypro (Mfg. Number: 9910-D252GRGI)

Details

KEY FEATURES

  • Port sizes: 3/4 in. HB inlet, 1/2 in. NPT outlet (D252); 3/8 in. HB outlet (all gear reduction models)
  • Shaft (D252): 3/4 in. solid keyed
  • Shaft (D252GRGI): 3/4 in. hollow shaft with gear reduction for 2 to 3-1/2 hp gasoline engine
  • Shaft (D252GRGI58): 5/8 in. hollow shaft with gear reduction for 2 to 3-1/2 hp gasoline engine
  • Shaft (D252GRGIAP): 3/4 in. hollow shaft with a 5/8 in. output shaft and gear reduction for 3 hp gasoline engine
  • Diaphragms: 2, semi-hydraulic
  • Mounting base included
  • Crankcase Oil Capacity: 13 oz.


MATERIALS

Housing: Anodized aluminum


SPECIFICATIONS

MAXIMUM FLOW: 6 gpm/22.7 lpm
MAXIMUM PRESSURE: 290 psi/20 bar
MAXIMUM RATED SPEED: 650 rpm (D252); 3600 rpm (D252GRGI, D252GRGIAP and D252GRGI58)
MAXIMUM FLUID TEMPERATURE: 140 degrees Fahrenheit/60 degrees Celsius
WEIGHT: 12 lbs./5.4 kg (D252); 14 lbs./6.4 kg (all gear reduction models)
