INSTALLATION INSTRUCTIONS

Step 1. Elevate unit 6" in height.
Note: Feet can only provide 2 1/2" height. Extra lift to be provided by installer. CAUTION! The pump and bracket are not designed to support the weight of the unit. Do not allow the unit to rest on the pump and mounting bracket after it is installed.

Step 2. Knock inlet hole out of the condensate pump in the location shown. (For pictures, refer to the product label linked on this page.)

Step 3. Using a screwdriver, remove two screws located on the side of the unit as shown.

Step 4. Attach the condensate pump assembly using the two screws as shown. Do not over tighten the screws.

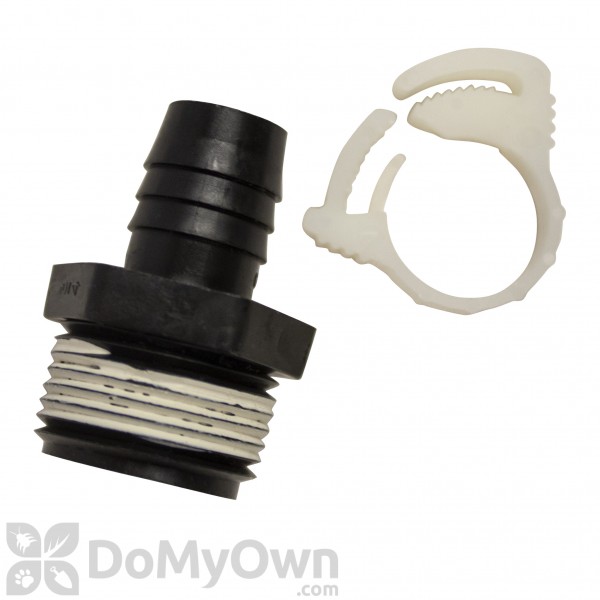

Step 5. Attach the hoses as shown. Install the smaller (3/8") drain hose onto the barbed outlet fitting of the condensate pump. Verify hose is secured tightly to condensate pump by pulling gently on hose. Route hose appropriately to a drain.
Note: Do not exceed 10 ft. vertically when pumping to a drain above the unit. Using the original (5/8") product hose, cut to approximately 6" in length and route to the condensate pump as shown. Insert hose half way into the condensate pump. Do not push hose to the bottom of the condensate pump.

Step 6. Plug the pump and dehumidifier cords into an outlet that is protected with a GFCI device on its circuit.
