Typhoon 1 ULV Cold Fogger
Price/Ea.
$10,415.16
Have a Question? Ask Our Pros!
Email Our Pros
We're here to help
Offline. Leave Us a Message
You May Also Need
-
Product Overview

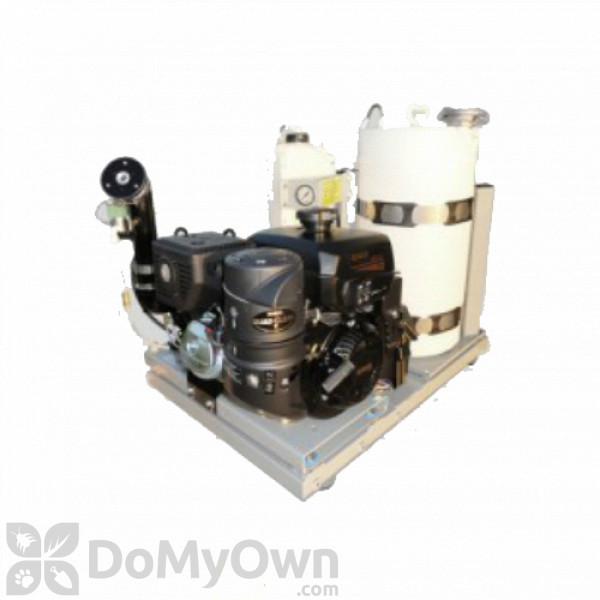

Typhoon 1 ULV Cold Fogger is the industry standard for vehicle mounted, medium-sized ULV cold foggers which offers the same features as more expensive machines. This product sports a rugged overhead valve engine mounted on a powder coated steel frame, which powers its excellent FMI pumping system. This cold fogger's efficient "Multi-Mist" nozzle is backed by years of testing and experience in producing consistent and uniform droplet spectrums, with 90% of the droplets below 20 microns at the recommended pressures and flow rates. This machine is also ideal for larvacide work and barrier spraying projects as it has flow rate capabilities that range from 0 - 128 oz/min, thanks to its pumping system capable of larger droplets and higher flow rate output. When used in conjunction with a GPS mapping provider and GPS systems such as the Dyna-Trax 2, this machine makes EPA compliance and other recording tasks a whole lot easier. The product measures 41.5 x 29 x 32 inches and weighs 297 pounds.
This product may take up to 2 weeks to ship.
-
Details
Dimensions 41.5 x 29 x 32 inches Tank Size (gal.) 1 Gallon Special Features diaphragm pumping system capable of larger droplets and higher flow rate output. Shipping Weight 415.00 lbs Manufacturer Curtis Dyna-Fog (Mfg. Number: 64600-1) Specifications
Formulation Output:
- Diaphragm pump – 0-128 oz/min; 0-3.8 liters/min
- Gear pump – 0-20 oz/min; 0-600 ml/min
- FMI pump – 0-18 oz/min; 0-532 ml/min
Droplet Size: 90% of droplets below 20 microns VMD
Engine:
- Kohler 9.5 Hp (277 cc), 4-cycle, OHV, electric start.
- Optional Honda 10.5 Hp (344 cc), 4-cycle, OHV, or Yanmar diesel
Blower: High volume, positive displacement, rotary type; 8.5 psi at 2750 rpm; 12 psi (0.82 bar) 205 cfm (5.8 cubic meters/min)
Pump Systems:
- Diaphragm pump - high volume, corrosive resistant
- Gear pump - stainless steel, magnetically coupled
- FMI - ceramic piston with carbon cylinder
Nozzles: High efficiency single nozzle, adjusts 360 degrees, removable for cleaning
Gauges: Digital Tachometer/Hourmeter for engine; liquid filled pressure gauge for nozzle boom pressure
Fuel Tank: 1.8 gallons; 7 liters; with a gauge
Formulation Tank: 15 gallons; 57 liters; with lockable cap
Flush Tank: 1 gallon; 3.8 liters
Shipping Data: 48 x 40 x 39 inches; 122 x 100 x 99 cm (L x W x H) 415 lbs; 188 kg 42.8 cubic feet; 1.2 cubic meters
-
