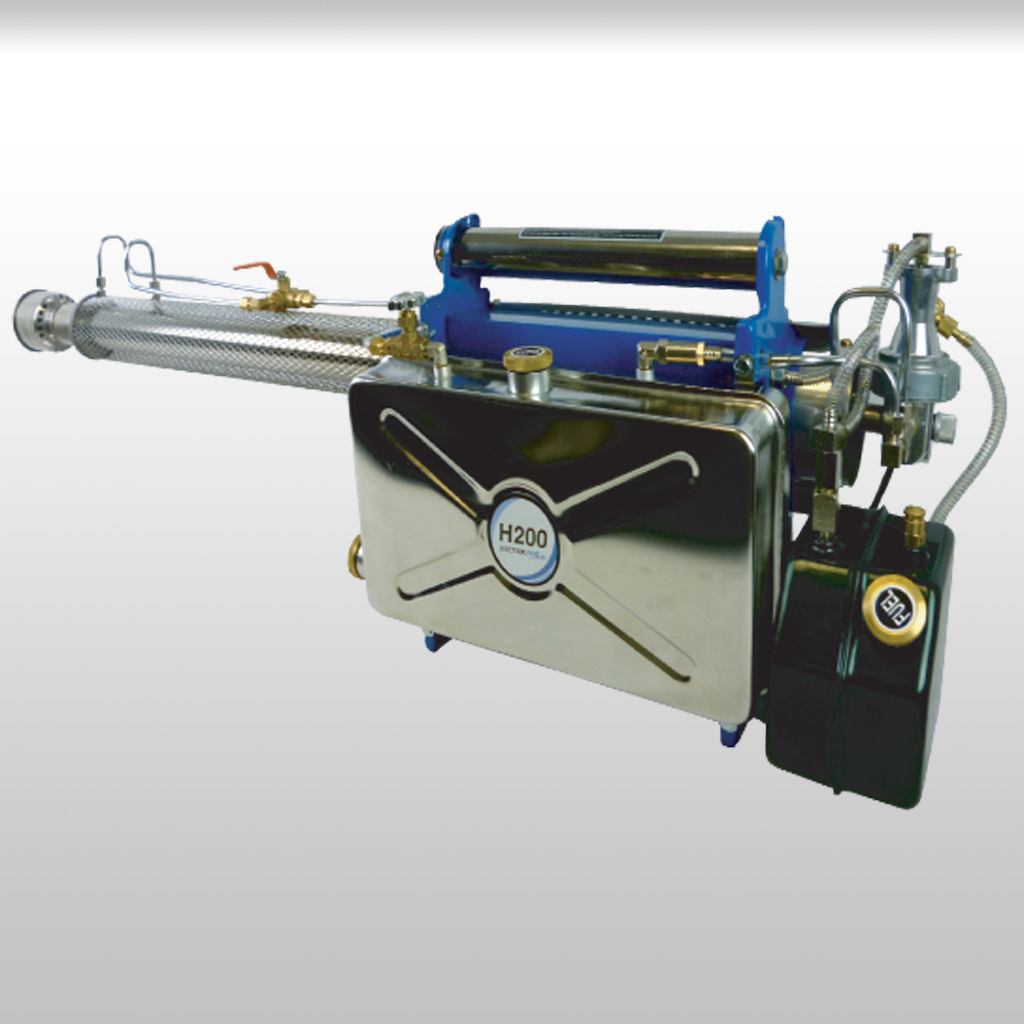

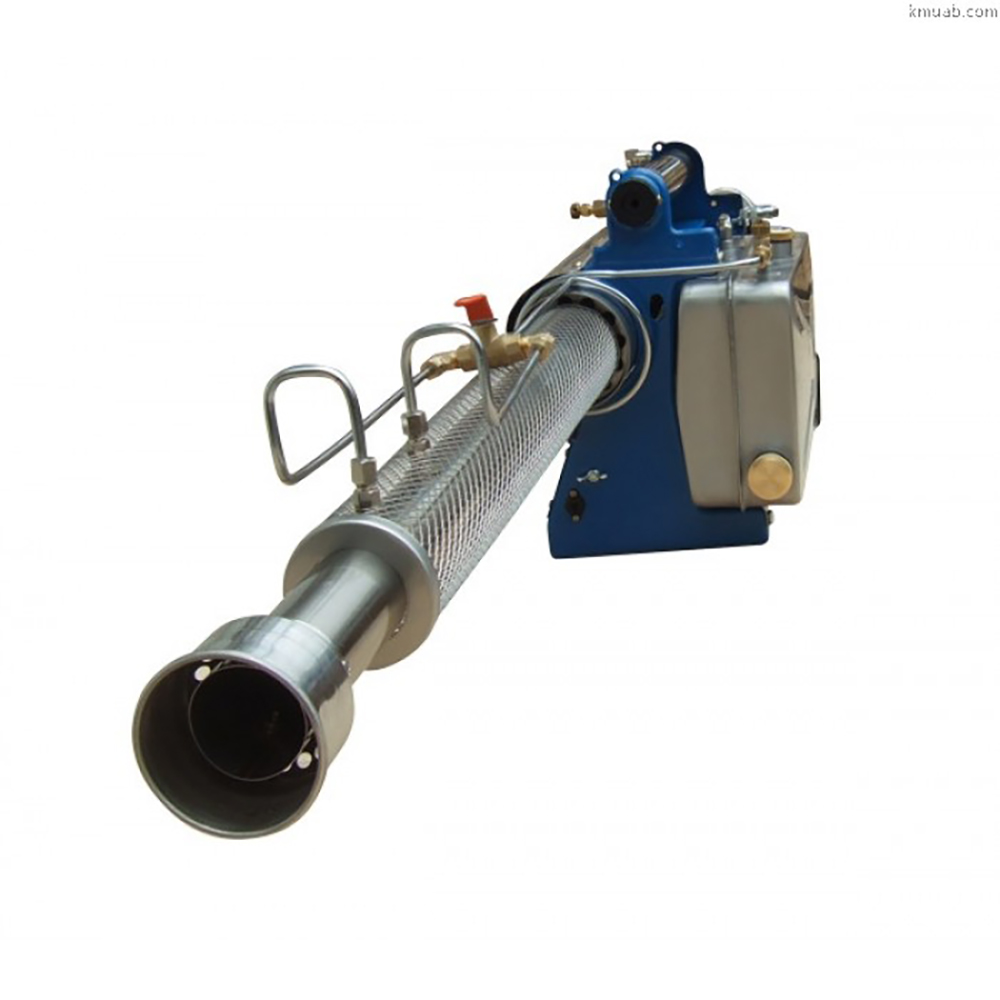

The Vectorfog H200SF Thermal Fog Machine has been specially designed for the applying oil based and water solutions. The H200SF has a nozzle that was specially designed for superior dispersal along with an exceptional Dual-Point inlet technology. This adaptable fogger machine will allow someone to handle any task, from animal health disinfection and plant protection, along with the control of vector carriers of diseases and pests. The H200SF model fogger has been manufactured using high quality stainless steel, providing the owner with years of performance and durability.
The VectorFog fogging equipment is used primarily for the application of biocides, disinfectants, pesticides and fungicides. VectorFog foggers create a mist or fog that forms an Ultra-Low Volume (ULV) droplet that is between 5-30 microns in length. Studies have revealed that these sizes of droplets are perfect to handle vector carriers of diseases, pathogens, and pests. Also, solutions may be applied in concentrations of 10-90%, and with flow rates of over 13.2 gallons per hour (GPH) (50 LPH) making them more efficient foggers. The H200SF has a fuel tank capacity of 1.2 quarts (1.2 L) with a fuel consumption rate of 1.2 quarts per hour.
Product Documents
| For use in | Commercial & Residential: Home & Garden, Greenhouses, Farms, Factories and Warehouses |
|---|---|
| Application | * See Video Above |
| Dimensions | 52.40 x 11.00 x 15.00 inches |
| Voltage | 110v or 220v |
| Color | Stainless steel |
| Sprayer Type | Thermal Fogger |
| Tank Size (gal.) | 1.72 Gallon (6.5 Liter) |
| Material / Construction | Stainless steel |
| Spray Pattern |
Spray distance: 65-82 ft Spray distance with water base: 29 ft |
| Pressure (PSI) | Solution tank pressure: 2.13 PSI (0.147 bar) |
| Special Features |
Patented design allows Water and Oil based Solutions 5-30 Micron Droplets 13 GPH Speed |
| Warranty | One Year Warranty against factory defects |
| Parts Included | Tool Kit, SS Tank, 6V rechargeable battery |
| Shipping Weight | 33.50 lbs |
| Manufacturer | VectorFog (Mfg. Number: H200SF) |

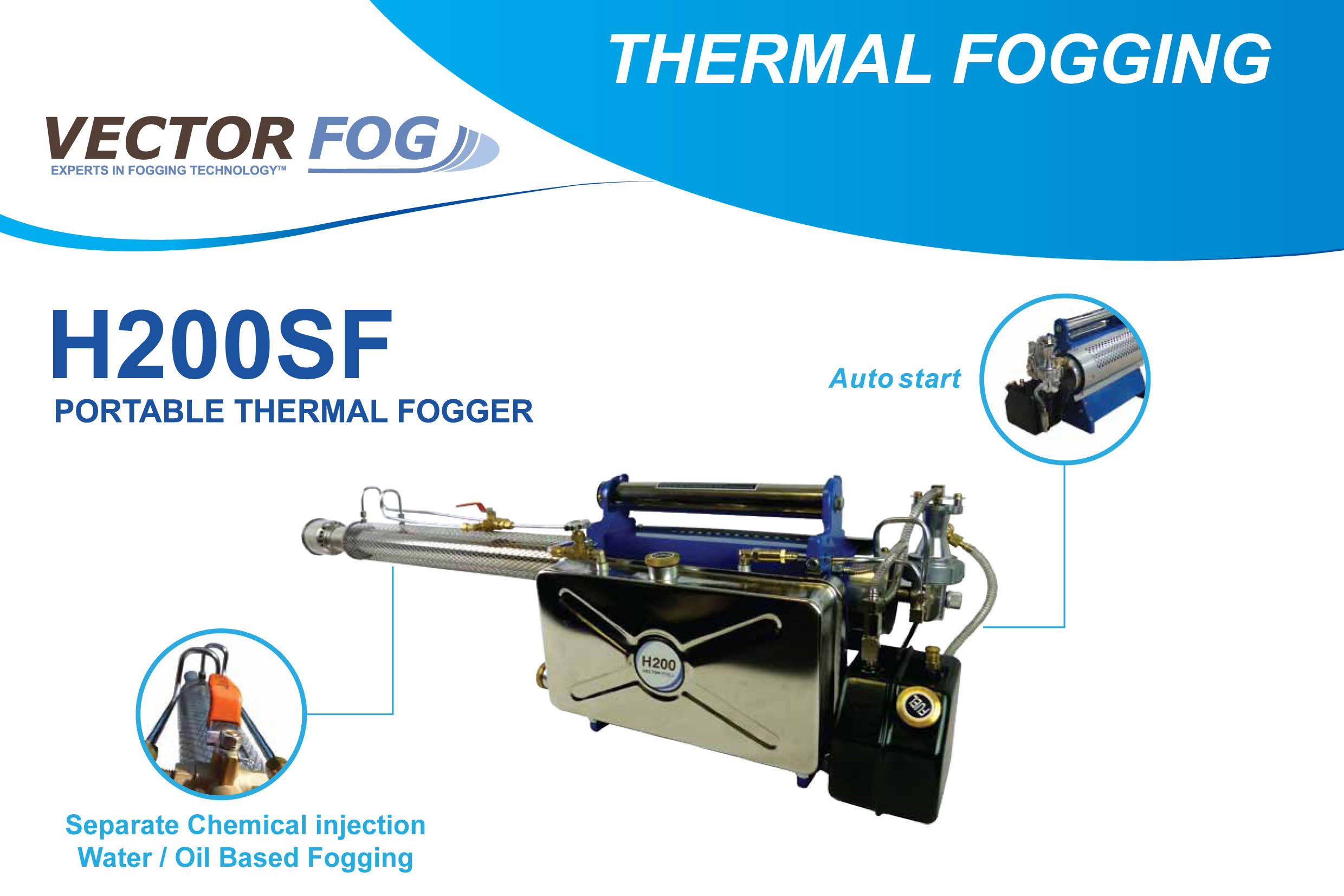

The SF thermal foggers are designed for the application of water or oil based solutions. VectorFog SF unique and patented Dual-Point inlet technology, these foggers are one of the most versatile and durrable foggers in the market today. Simply turn a valve to switch between water and oil based fogging. For 2014 the SF Series foggers will also come with additional options including a manual start only, auto start (standard), and dual start. A materials option will also be available for 2014, including an all stainless steel option for applying more corrosive chemicals.
For 2014 the H200SF was tested by the US Navy Entomology Center to evaluate the droplet size of the VectorFog SF Series machines in the Volume Medium Diameter (VMD) spectrum. Using a laser diffraction spectral analyser usder DV 0.5 conditions, the VectorFog H200SF showed to perform considerably better than Chinese brands, and slightly better than brands from Germany. These SF Series foggers also came on top in the water fogging test, achieving the smallest droplet size of all the thermal foggers ever tested by the DOD.
Damage package/product information: If you receive a product or package that is damaged, please call customer service at Vector Fog at 1-844-780-6711. They will be able to assist you.
Replacement parts are available for purchase. Please call our customer service at Toll Free: 866-581-7378 or email us and we will help you. Please find our email link at the "contact us" button above.
VectorFog H200SF
By Craig on 11/18/2015
Be prepared to tighten all the fittings. Every nut and bolt was loose on the fogger Terrible quality control for assembly. The fogger will not start on the first try, be prepared to spend about 15 minutes repeating the start procedure, I think it takes that long to purge all the air from the fuel system. The fogger is loud so wear ear protection. The fogger will put out large amounts of fog once it runs. So far the unit works as advertised. I couldn't give it more than 3 stars because of the assembly issues.
Was this review helpful to you? YesNo
19 of 23 people found this review helpful
This is Junk
By Bik on 08/21/2020
Received this product with faulty charger. I was instructed to reach out to the manufacturer directly. The customer support mentioned I have to purchase a new charger! Are you kidding me. First of all it was a fully product that was supplied and secondly you are asking us to pay for another charger. Would never buy from you guys.
Was this review helpful to you? YesNo
5 of 5 people found this review helpful
Great fogger when it works
By Jim on 06/21/2019
H200SF Worked great the 1st use. After that it has been extremely unreliable. Backfires, spits flames, cuts out and often leaves a flame burning in the end. a few times it has run a half tank, no problem, then starts acting up again and wont work. hoping to get the manufacturer to help fix it. if not, into the dumpster. Will update.
Was this review helpful to you? YesNo
2 of 2 people found this review helpful
Great Fogger
By Matthew on 04/03/2017
Verified Purchase
Does it run on just gasoline or a gas and oil mixture?
Per the manufacturer, the VectorFog H200SF Thermal Fog Machine is a 4-stroke engine that runs on just regular gasoline like you would get from any local gas station. There is no need to mix it with oil.
Was this answer helpful to you? YesNo
13 of 15 people found this answer helpful
According to Vector Fog, if the fuel mixture is too rich that is being used in the H200SF Thermal Fog Machine this can cause the fuel to burn fast and then fire comes out of the nozzle. To fix this issue, they recommend shutting down the fuel valve by following these steps below. You may also contact Vector Fog directly at 1-844-780-6711 for addtional troubleshooting and assistance.
1. Push START button and hold
2. Once fuel burns up, release the START button.
3. Then, push START button again and slowly with other hand start opening up fuel valve.(You will see fuel creeping up the fuel hose, then the machine will try to start.)
4. Choke again and once it catches the right fuel mixture it will begin working properly.
This procedure needs to get done sometimes because customers will move the fuel valve as they operate the machine to give more fuel to the system as it operates, but they forget to return it back to the original position, so when it starts, there is fuel in the system and that's what causes the fire out of nozzle.
This unit should not catch fire if the directions on the manual are followed. This procedure and the knocking procedure are on the manual for referencing. Sometimes when customers get comfortable using the machine, they may overlook small things that can make a big difference. This machine has a pulse jet engine and the fuel air mixture is very important for proper operation.
Was this answer helpful to you? YesNo
5 of 5 people found this answer helpful
I have 2 very large warehouses i have to fog and i am currently only using a tri-jet. Would this speed up the process as it takes several hours with the tri-jet?
Was this answer helpful to you? YesNo
4 of 4 people found this answer helpful
What oil base product I can use with this thermal fogger.
Was this answer helpful to you? YesNo
3 of 4 people found this answer helpful
I have this machine but I really been looking for answers about if I can use this machine to do indoor jobs, please I really want to know because I don't have any manual how if is ok do use indoor
