Product Overview
The Chapin 150 lb. Tow Behind Spreader 8620B is designed to eliminate the hassle of reaching a lever to stop seed or fertilizer from spilling. It helps to prevent burning of lawns and turf and eliminates waste. It features a unique dual impeller design that allows material to spread if the vehicle is in motion and automatically stops when not in motion. This high-quality spreader has a capacity of 150 pounds and protects its load from shock and impact with its 14 inch pneumatic wheels. For precise application, it has an easy to set gate adjustment with 11 incremental settings. Oil impregnated bearings are used to lessen friction on gearbox and axle.
*Please Note: This spreader is NOT recommended for use with lime products such as pelletized lime, lime powder, and Agri lime.
-
Details
For use in Farm, agriculture, livestock, home and garden, turf, landscape Application Granular fertilizers, granular pesticides, seed, granular weed and feed. Dimensions 25 x 21 x 31.5 Coverage Area Spread width up to 120 in. Material / Construction Poly hopper, metal alloy, and powder-coated steel. Special Features Has unique dual impeller design. Warranty Limited Lifetime Warranty. Shipping Weight 43.15 lbs Manufacturer Chapin (Mfg. Number: 8620B) UPC 023883086206 FEATURES
- 14” Pneumatic Tires

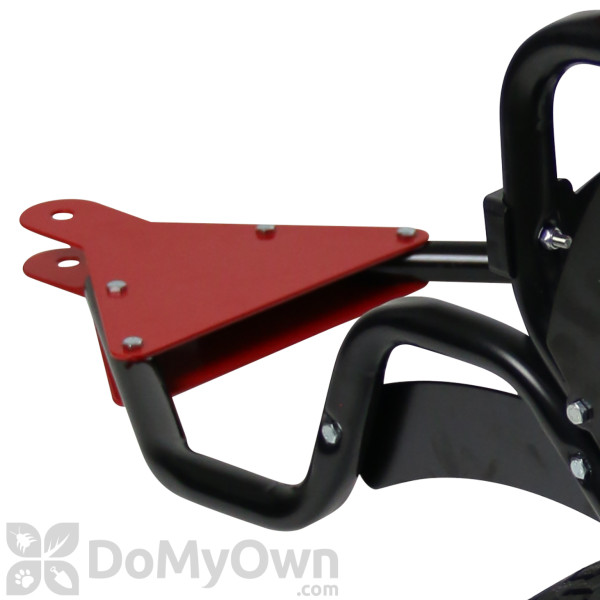

- Trailer Hitch Heavy duty
- Gearbox With oil impregnated bronze bearings and grease fitting (cut-away view)
- Easy To Set Gate Adjustment 11 incremental settings
- Oil Impregnated Bronze Bearings
- Auto-Stop Dual Impeller
Technical Specs
- Model Number 8620B
- Hopper Construction: Poly
-
Axle Material: Metal-Alloy
-
Hopper Capacity: 150-Pounds
-
Frame Type: Adjustable Steel
-
Frame Construction: Powder-Coated Steel
-
Handle Type: T-Handle With Rubber Grips
-
Handle Material: Metal-Alloy
-
Gate Control: Adjustable Gate Lever
-
Linkage: Solid Steel
-
Pallet Cube: 90.67
-
Gear Box: Enclosed W/ Grease Fitting
-
Carton Cube: 9.57
-
Gear Construction: Metal-Alloy
-
Impeller: Designed For Even Spread Pattern
-
Pallet Quantity: 8
-
Warranty: Limited Lifetime
-
Product Documents
-
3 Customer Reviews
Top Reviews
Do not use for fertilizer.
By Henry on 01/25/2024
This spreader is only ok for seed, if there is a lot of dust in the seed or spreading over dirt gears WILL Seize up
The gear box is junk!
By Michaelz on 04/29/2024
The spreader is great when working. Read the reviews on Chapin's own website about the gearbox, it is terrible and will seize up after the 1 year warranty. At least domyown does carry this part for …
Read Full Review »
Chapin Tow Behind Speader
By Chris on 09/23/2022
Loved the product well built and one of the better spreaders I've bought in years past. The fact this spreader has brass bushings verses plastic is a plus and grease fittings for long lasting performa…
Read Full Review » -
3 Questions & Answers
Helpful Q&A'sQHow wide is the spread pattern on the Chapin 150 lb. Tow Behind Spreader 8620B?AThe distance Chapin 150 lb. Tow Behind Spreader 8620B will spread will depend upon the speed at which you are walking, but can do 10-12 ft.
QWhy can't you use lime in the Chapin 150 lb. Tow Behind Spreader 8620B?AThe Chapin 150 lb. Tow Behind Spreader 8620BÂ has only been tested for grass seed and fertilizer applications per the product manual. There is no information stating yes or no to use this spreader for…
Read Full Answer »The Chapin 150 lb. Tow Behind Spreader 8620B has only been tested for grass seed and fertilizer applications per the product manual. There is no information stating yes or no to use this spreader for lime applicaitons so the best resource would be to contact Chapin directly at 1-800-950-4458 for their recommendations.ÂQCan you show a video on how to assemble the Chapin 150 lb. Tow Behind Spreader 8620BDo you have a video on how to finalize the assembly of the spreader, if so where do I fine it?AUnfortunately, we do not have a video on our site demonstrating how to assemble the Chapin 150 lb. Tow Behind Spreader 8620B. However, please click here to be taken to the product manual for assembl…
Read Full Answer »Unfortunately, we do not have a video on our site demonstrating how to assemble the Chapin 150 lb. Tow Behind Spreader 8620B. However, please click here to be taken to the product manual for assembly instructions.Â
