Product Overview

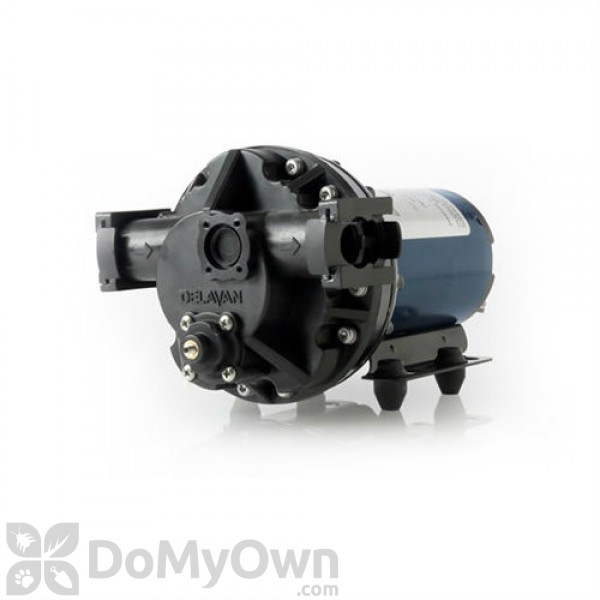

The Delavan 5830-201 Electric Pump is an on-demand diaphragm pump which delivers 3.0 GPM and 60 PSI to ensure a reliable application. It is constructed of high-quality Polypropylene and coated steel to ensure durability. It comes with Viton valves, 1/2 in. FNPT ports, and 12 VDC power supply.

Features and Specs

For use in: Residential, Commercial and Industrial Sites
Voltage: 12 Volts
Material / Construction: Coated steel/Polypropylene
Seal Type: Viton Seals
Pressure (PSI): 60
Special Features: Chemical-resistant materials
Warranty: One Year Limited Warranty against factory defects
Shipping Weight: 6.52 lbs
Manufacturer: Delavan (Mfg. Number: 5830-201)

Details

Specifications

Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
Leads: 14 AWG, 6 in. Long
Duty Cycle: See Heat Rise graph
Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180 degrees Fahrenheit (82 degrees Celsius). (See Heat Rise graph)

Materials of Construction

Housings: Polypropylene
Valves: Viton
Diaphragm: Santoprene
Fasteners: Stainless Steel
Motor Shell: Coated Steel

Pump

Type: 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass mode
Certifications: CE Approval
Liquid Temperature: 140 degrees Fahrenheit (60 degrees Celsius) Max.
Priming Capabilities: 14 feet (4 m)
Max Pressure: 60 PSI (4.2 bar)
Inlet/Outlet Ports: 1/2 in. FNPT
Weight: 6 lbs. (All 5800 Models)
